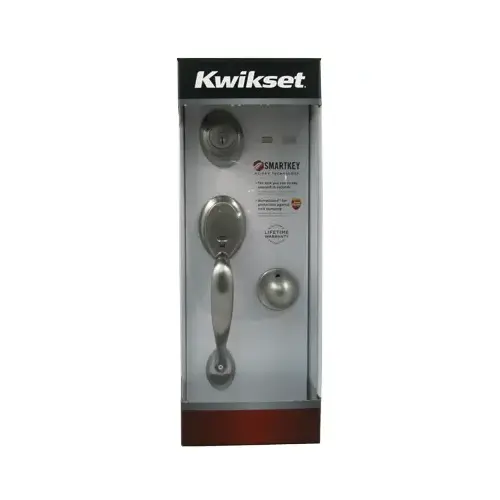

Kwikset 687DAXP 15 SMT CP 687DAxP 15 SMT CP Dakota Handleset with Polo - Satin Nickel
Item #: 687DAXP 15 SMT CP by Kwikset
UPC #: 883351263863
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Nickel
Style
Traditional
Warranty
Lifetime mechanical and finish warranty
ADA Compliant
No
Assembled Depth (in.)
2.15625
Assembled Height (in.)
17.19
Assembled Width (in.)
2.939
Backset size (in.)
Adjustable
Certifications and Listings
No Certifications or Listings
Deadbolt strike width (in.)
1.0
Door Handing
Reversible
Door Locks & Knobs Product Type
Keyed Handlesets
General Material
Metal
Hardware Finish Family
Nickel
Knob Diameter (in.)
1.875
Knob style
Full ball
Security/ANSI Grade
ANSI Grade 3 (Good)
Lock Type
Keyed Entry
Pack Size
1
UNSPSC
46171500
Security Grade
3
Compatible Key Numbers
KW1
Returnable
Yes
Defective Code
A
Commercial or Residential
Commercial and Residential
Drill Resistant
No
Sub Brand
SmartKey
Cylinder Type
5-Pin
Indoor or Outdoor
Outdoor
Maximum Door Thickness
1-3/4"
Packaging Type
Clamshell
Faceplate Material
Nickel
Minimum Door Thickness
1-3/8"
Trim Rings
Yes
Product Type
Entry Handleset
Door Direction
Left or Right Handed
Material
Metal
Adjustable Backset
Yes
Each Weight
4.400 LB
Hazardous Material
No
Velocity
X
Dimensions
17-3/16 in H
Center to Center
5-1/2"
Door Thickness
1-3/4"
Grip Center to Center
8-13/32"
Faceplate Size
1 x 2-1/4"
Strike Type
Full Lip Round Corner
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Interior Handle Type
Knob
Nomenclature
687DAXP15SMTCP DAKOTA HSET SNK
Backset Type
Universal
Edge Bore Diameter
1"
Deadbolt Latch Throw
1"
Re-Key Technology
Smartkey
Plainbolt Latch Throw
1/2"
Strike Size
1 x 2-1/4 in Deadbolt 2-1/4 in Latchbolt
Backset Size
2-3/8 x 2-3/4"
Keyway type
KW1
Height
21.00
Length
5.50
Width
8.00
Country Origin Code
CN
ECCN
EAR99
Keyway
KW1 5-Pin SmartKey
Function
Single Cylinder
Collection
Dakota
Package Height
5.5"
Package Length
21"
Package Width
8.13"
Item Weight
5.08 lbs
Grade
Grade 3
Backset
2-3/8 In. or 2-3/4 In.
Exterior Access
Key
Interior Action
Turn Piece
Package Quantity
1
UL Listed
No
Keying
Keyed
Commercial/Residential
Commercial/Residential
MADE IN THE USA
No
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lockset Function
Entry
Product Overview
DAKOTA/POLO HANDLE SMT STN NCK
Specifications:
Specifications:
Dimensions: 17-3/16 in H
Material: Metal
Sectional handleset with single cylinder deadbolt. Latchbolt operated by thumbpiece outside and grip inside. Deadbolt operated by key outside and thumbturn inside. Security handlesets feature full 1" solid core throwbolt, all metal mechanisms, anti-pry shield and 5-pin system. DOOR PREP: Deadbolt - 2-1/8" or 1-1/2" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. Handle - 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: Deadbolt - adjustable 2-3/8" - 2-3/4" optional, Handle - dual 2-3/8" - 2-3/4" plainlatch standard. DOOR THICKNESS: 1-3/4" doors. CYLINDER: 5-pin. FACEPLATES: 1" x 2-1/4" round corner. STRIKES: Deadbolt - 1" x 2-1/4" round corner. Handle - 2-1/4" full lip round corner. BOLT: Deadbolt - 1" throw. Handle - 1/2" throw plainlatch. HANDING: Reversible for right or left hand doors. SMT - SmartKey, re-key the lock in less than ten seconds.
