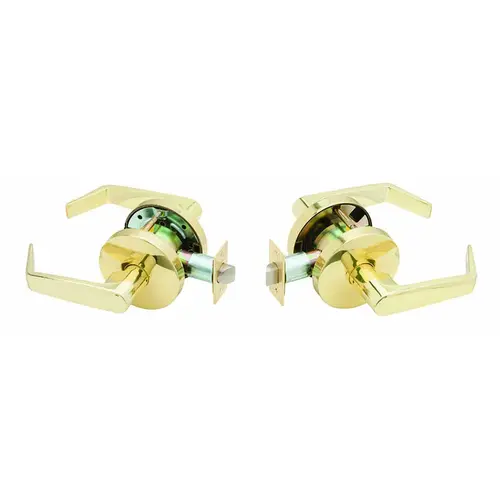

Falcon W101S D 605 W Series Passage Dane Lever Lock with 30206 Latch 30148 Strike Bright Brass Finish
Item #: W101S D 605 by Falcon
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Solid, pressure-cast zinc levers
- Door Thickness: 1-3/8” to 1-3/4” standard.
- Backset: 2-3/4” standard; 2-3/8” also available.
- Wrought brass or bronze roses over steel through-bolted rose inserts
- UL listed latch 1.5hrs
- Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Meets ANSI/BHMA A156.2, Series 4000, Grade 2
- Heavy Duty Torsion Springs to Prevent Lever Sag
- Handing: Locks are non-handed.
- Priced to Provide Value for Low Traffic, Low Budget Doors and Projects
- Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Does Not Require Field Disassembly for Rehanding, Allowing for Easy Installation and Maintenance
- Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Non Handed Design
- Limited 10 Year Warranty
- Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL: 3-hour A label.
Finish
Bright Brass
Function
W101-Passage Latchset
Series
W Series
Design
Dane
Configuration
Cylindrical Lockset
Product Class
Commercial
Edge Bore
1"
Cross Bore
2-1/8", 2-3/4"
ANSI Certification
A156.2
ADA
Yes
Collection
Dane, W
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Backset
2-3/4", 2-3/8"
UL Listed
Yes
Approved for Commercial Use
Yes
Style
Contemporary/Modern
Shape
Flat, Straight
Latch Faceplate
Square Corner
Handing
Left, Reversible, Right
Theme
Modern
Grade
Grade 2
Color Code
605/US3
Package Volume
0
Lever/Knob Design
D - Dane
Package Qty
1
Rose/Escutcheon Design
3-5/16 In. Diameter
Special Marks
Complies with ADA accessibility guidelines
Base Material
Brass
Sub-Series
CL_Cylindrical_Locks_Falcon_6
Lever Style Family
Straight Return Lever
Latch Bolt Material
Stainless Steel
Knob/Lever Size
4-5/8 Inch
Latch Corner
Square
Lever Length-Inches
5 Inch
Manufacturer Parent
Allegion
Product Type
Cylindrical Lock
Features
Heavy Duty Torsion Springs to Prevent Lever Sag; does Not Require Field Disassembly for Re Handing Allowing for Easy Installation and Maintenance
Trim Material
Solid Pressure Cast Zinc (Lever)
Product Projection
2-1/2 Inch
Strike Lip
1-5/16 Inch
Function Family
Passage/Hall/Closet
Front Size
1-1/8" x 2-1/4"
Function Description
Latch retracted by knobs/levers at all times
Standards
ANSI/BHMA A156.2; UL Listed
Door Cross Bore
2.125 Inch
Rose/Escutcheon Trim
Round Rose
Strike Size
1-1/4" x 4-7/8"
Lever Style
DAN-Dane
Finish Family
Polished Brass
ADA Compliant
YES
Strike Type
ANSI Curved Lip
Strike Number
30-148
Latch Type
Spring Latch
Latch Number
30-206
ANSI Function
F75
Finish Description
Bright Polished Brass
Latch Throw
1/2 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Rose Diameter
3-3/8 Inch
Handle Type
Lever
Warranty
10 year limited
Application
Retail; Multi Family; Mix Use; Government; Industrial
Product Overview
Passage Latchset, Dane Lever, Bright Brass
Whether your application is government/military, retail, industrial or multi-family, there's a W Series lock that fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business - Allegion.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
