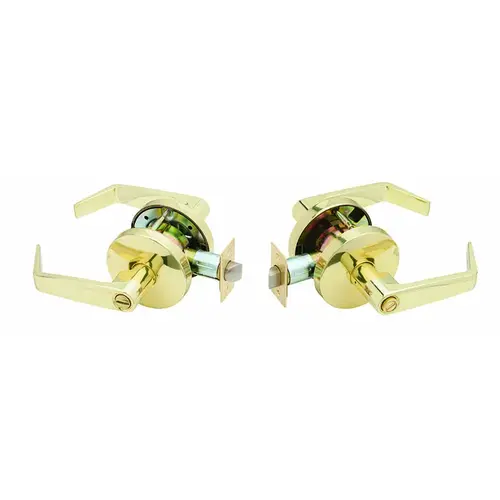

Falcon W301S D 605 W Series Privacy Dane Lever Lock with 30206 Latch 30148 Strike Bright Brass Finish
Item #: W301S D 605 by Falcon
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Solid, pressure-cast zinc levers
- Door Thickness: 1-3/8” to 1-3/4” standard.
- Wrought brass or bronze roses over steel through-bolted rose inserts
- Backset: 2-3/4” standard; 2-3/8” also available.
- UL listed latch 1.5hrs
- Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Meets ANSI/BHMA A156.2, Series 4000, Grade 2
- Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Handing: Locks are non-handed.
- Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL: 3-hour A label.
Shape
Flat, Straight
Theme
Modern
Style
Contemporary/Modern
Handle Style
Lever
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Collection
Dane, W
Configuration
Cylindrical Lockset
ADA
Yes
Latch Faceplate
Square Corner
Edge Bore
1"
Function
W301-Privacy Lock
UL Listed
Yes
Handing
Left, Reversible, Right
ANSI Certification
A156.2
Handle Material
Metal
Product Class
Commercial
Backset
2-3/4", 2-3/8"
Approved for Commercial Use
Yes
Finish
Bright Brass
Series
W Series
Design
Dane
Cross Bore
2-1/8", 2-3/4"
Grade
Grade 2
Color Code
605/US3
Package Volume
0
Lever/Knob Design
D - Dane
Package Qty
1
Rose/Escutcheon Design
3-5/16 In. Diameter
Special Marks
Complies with ADA accessibility guidelines
Base Material
Brass
Strike Size
1-1/4" x 4-7/8"
Strike Number
30-148
Manufacturer Parent
Allegion
Knob/Lever Size
4-5/8 Inch
Latch Number
30-206
Finish Description
Bright Polished Brass
Latch Throw
1/2 Inch
Latch Type
Spring Latch
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
ANSI Function
F76
Sub-Series
CL_Cylindrical_Locks_Falcon_9
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Front Size
1-1/8" x 2-1/4"
Latch Bolt Material
Stainless Steel
Lever Length-Inches
5 Inch
Handle Type
Lever
Door Cross Bore
2.125 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Application
Retail; Multi Family; Mix Use; Government; Industrial
Trim Material
Solid Pressure Cast Zinc (Lever)
Function Family
Privacy/Bedroom/Bathroom
Standards
ANSI/BHMA A156.2; UL Listed
Rose Diameter
3-3/8 Inch
Lever Style
DAN-Dane
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Product Projection
2-1/2 Inch
Features
Heavy Duty Torsion Springs to Prevent Lever Sag; does Not Require Field Disassembly for Re Handing Allowing for Easy Installation and Maintenance
Strike Type
ANSI Curved Lip
Latch Corner
Square
Warranty
10 year limited
Strike Lip
1-5/16 Inch
Finish Family
Polished Brass
Product Overview
Privacy Lock, Dane Lever, Bright Brass
Whether your application is government/military, retail, industrial or multi-family, there's a W Series lock that fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business - Allegion.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
