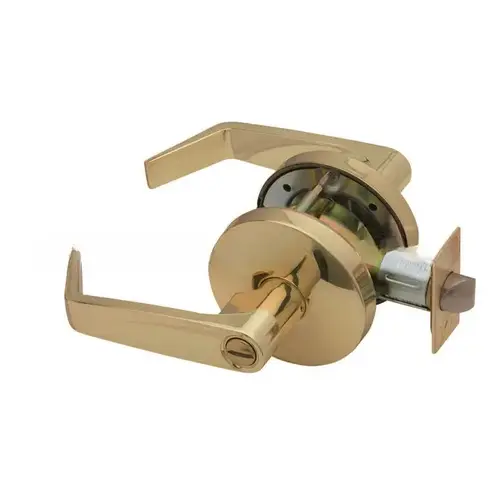

Falcon W301S D 606 W Series Privacy Dane Lever Lock with 30206 Latch 30148 Strike Satin Brass Finish
Item #: W301S D 606 by Falcon
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Solid, pressure-cast zinc levers
- Door Thickness: 1-3/8” to 1-3/4” standard.
- Backset: 2-3/4” standard; 2-3/8” also available.
- Wrought brass or bronze roses over steel through-bolted rose inserts
- UL listed latch 1.5hrs
- Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Meets ANSI/BHMA A156.2, Series 4000, Grade 2
- Heavy Duty Torsion Springs to Prevent Lever Sag
- Handing: Locks are non-handed.
- Priced to Provide Value for Low Traffic, Low Budget Doors and Projects
- Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Does Not Require Field Disassembly for Rehanding, Allowing for Easy Installation and Maintenance
- Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Non Handed Design
- Limited 10 Year Warranty
- Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL: 3-hour A label.
Finish
Satin Brass
Function
W301-Privacy Lock
Series
W Series
Design
Dane
Theme
Modern
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Shape
Flat, Straight
Style
Contemporary/Modern
Approved for Commercial Use
Yes
UL Listed
Yes
Backset
2-3/4", 2-3/8"
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Collection
Dane, W
Configuration
Cylindrical Lockset
Product Class
Commercial
Edge Bore
1"
Cross Bore
2-1/8", 2-3/4"
ANSI Certification
A156.2
ADA
Yes
Grade
Grade 2
Color Code
606/US4
Package Volume
0
Lever/Knob Design
D - Dane
Package Qty
1
Rose/Escutcheon Design
3-5/16 In. Diameter
Special Marks
Complies with ADA accessibility guidelines
Base Material
Brass
Strike
ASA Strike
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Cross Bore Size
2-1/8" Bore with Two 5/16" Post Holes
Product Overview
Privacy Lock, Dane Lever, Satin Brass
Whether your application is government/military, retail, industrial or multi-family, there's a W Series lock that fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business - Allegion.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
