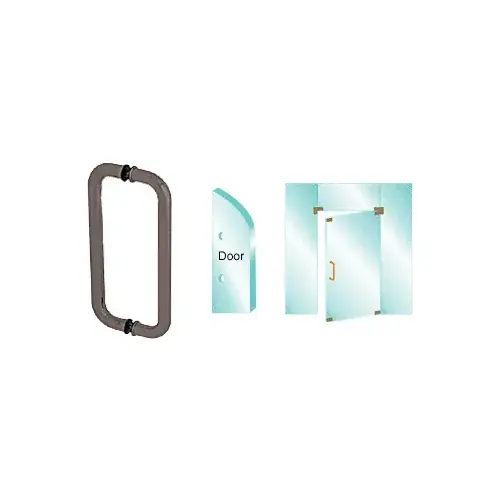

CRL CM12X12DU Dark Bronze 12" Glass Mounted Standard Pull Handle
Item #: CM12X12DU by CR Laurence
In Stock $120.36 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Stocked in Up to Five Architectural Finishes
Mounting Holes Center-to-Center
12" (305 mm)
Center-to-Center
12" (305 mm)
Finish
Dark Bronze
Overall Length
10
Center to Center
12
Glazing Thickness
3/8 To 3/4
Finish/Color
Black Bronze Anodized
Style Washers
Yes
Mounting Hole Diameter (Inches)
5/8
Style Washer Diameter (Inches)
1-1/4
Diameter
1"
Mounting Type
Back-To-Back
Mounting Center To Center (Inches)
12
This CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (CD24X24BS125 Model only).
Projection: 3" (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
