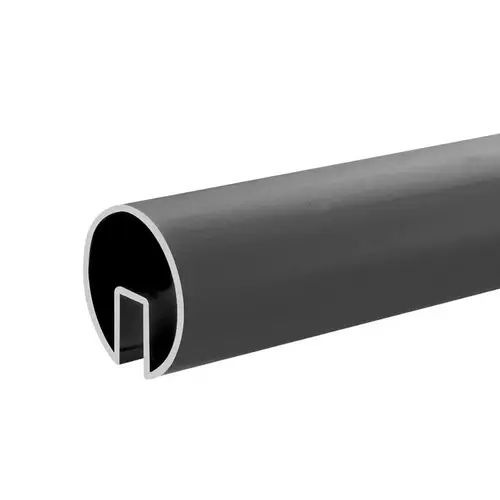

CRL GR30DU Dark Bronze 3" Extruded Aluminum Cap Rail for 1/2" or 5/8" Glass - 240"
Item #: GR30DU by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Available for 1/2", 9/16" or 5/8" (12, 13.52, or 16 mm) and 3/4" (19 mm) Glass
- Connects to a Variety of Fabricated Corners and End Caps
- Custom Shapes and Sizes are Available
- Use Sleeve Number GR30CSM
1-11/16" (43 mm)
3/4" (19 mm)
.125" (3.2 mm)
3" Extruded Aluminum Cap Rail for 1/2" or 5/8" Glass - 240"
1-11/16" (43 mm)
1/2 or 5/8
Black Bronze Anodized
CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
This dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
