Dark Bronze 48" 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device

Roll over image to zoom in

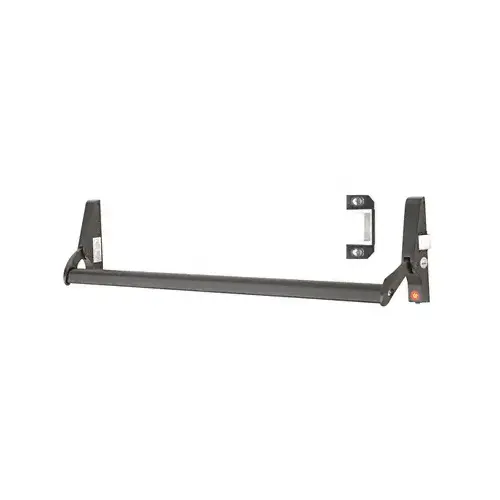

Jackson 311095RC4313 Dark Bronze 48" 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device

Item #: 311095RC4313 by Jackson

See reviews See reviews

In Stock $122.54 /each

SAVE UP TO 12.25

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
  • Concealed Fastening for Added Security
  • Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors

Type

Rim - C-Strike

Handing

Right Hand Reverse

Brand

Jackson

Finish

Dark Bronze

Certification

ANSI/BHMA 156.3

Finish/Color

Dark Bronze

Panic Bar Width Net

48

Material - Mechanical Components

Stainless and Hardened Plated Steel

Recommended Door Type

Narrow,Medium,Wide Stile,Aluminum,Wood,Hollow Metal

Minimum Stile Width (Inches)

1-3/4

Panic Head Base Width

1-1/4

Material - Housing

Aluminum

Panic Type

Rim

Replacement Parts

30115,301117313,301409,DL911SCKDDU,DL911SCKADU

Material - Latch & Strike

Sintered Steel

Panic Head Height (Inches)

7-5/16

Panic Bar Projection (Inches)

4-5/8

Panic Dogging

Screw Driver

Model

1095

Door Thickness

1-3/4

Door Width

48"

UL Listed

Yes

Includes

Mounting Hardware

For Door Thickness

1-3/4 Inch

Manufacturer Parent

CRH

Device Rating

Panic Exit Hardware

Finish Description

Dark Bronze Anodized

Stile

Wide Stile

For Door Height

7 Foot

Function

Exit Only

Hand

Right Hand Reverse

Sub-Series

EDT_Rim_Devices_crl_jackson_4

Fire Rated

No

ADA Compliant

No

Application

Narrow; Medium and Wide Stile Aluminum; Wood or Hollow Metal Doors

Device Type

Rim Device

Length

4

Function Family

Exit Only Device

Device Length

48 Inch (4 Foot)

Product Type

Exit Device

Features

Wear Points Insulated by Nylon Sleeves and Rollers; Requires Rim Cylinder for Keyed Entry; Cylinder Mounting Pad Not Required; Concealed Fastening for Added Security

Dogging Options

Dual Dogging

Finish Family

Dark Bronze

Door Type

Aluminum, Hollow Metal, Wood

exit device type

Rim Exit

Bar Style

Crossbar

Alternate Part Number-1

109386


CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. These Exit Devices are designed to withstand wear and tear, yet remain aesthetically pleasing for years to come. Each part is manufactured from the highest quality materials, which are hand fitted and adjusted for a smooth, whisper quiet operation. CRL Jackson® Exit Devices are suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors.
SPECIFICATIONS:
  • Contoured Field Sizeable 48" (1.22 m) Long Crossbar
  • Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
  • Wear Points Insulated by Nylon Sleeves and Rollers
    1095 Rim Device
  • Requires Rim Cylinder for Keyed Entry
  • Cylinder Mounting Pad Not Required
    MATERIALS:
  • Body and Arms: High Tensile Strength Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
    Product Warning:
    Wood Door Mounting Requires Use of Cat. No. 30894 Wood Door Mounting Kit.

    .
