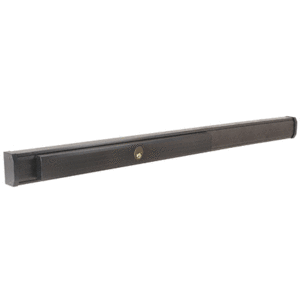

Jackson 311285CL4313 Dark Bronze 48" 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
Item #: 311285CL4313 by Jackson
In Stock $303.71 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Sleek, Contemporary Style
- Suitable for Use with Narrow, Medium and Wide Stile Doors
- UL Listed for Panic Exit Hardware
Type
Concealed Vertical Rod with Cylinder Dogging
Size
48"
Handing
Left Hand Reverse Bevel (LHR)
Brand
Jackson
Finish
Dark Bronze
Handed
Left
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Dark Bronze
Panic Bar Width Net
46.5
Push Pad Width
24
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile And Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
3-3/16
Panic Type
Concealed Vertical Rods
Replacement Parts
DC7205SCKADU,DC7205SCKDDU,1CHDU,1C01,302630313,302861,30821J313
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Bar Projection (Inches)
2-7/8
Panic Dogging
Prepped For Cylinder Dogging
Model
1285
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Feet per Roll
25
This sleek, contemporary CRL Jackson® Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
.
