This sleek, contemporary CRL Jackson Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
REPLACEMENT PARTS:DC7205SCKADU DC7205SCKDDU 1CHDU 1C01 302630313 302861 30821J313
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

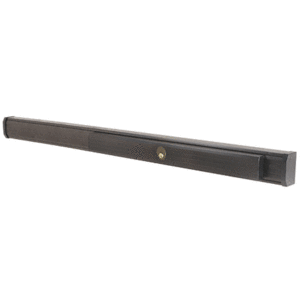

Jackson 311285CR4313Click To Copy Dark Bronze 48" 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
Item #: 311285CR4313 by Jackson
See reviewsSee reviews
In Stock
$276.13
/eachSAVE UP TO 27.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 126 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Sleek, Contemporary Style
- Suitable for Use with Narrow, Medium and Wide Stile Doors
- UL Listed for Panic Exit Hardware
Type
Concealed Vertical Rod with Cylinder Dogging
Size
48"
Handing
Right Hand Reverse Bevel (RHR)
Brand
Jackson
Finish
Dark Bronze
Handed
Right
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Dark Bronze
Series
1200
Panic Bar Width Net
46.5
Push Pad Width
24
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile And Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
3-3/16
Panic Type
Concealed Vertical Rods
Replacement Parts
DC7205SCKADU,DC7205SCKDDU,1CHDU,1C01,302630313,302861,30821J313
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Bar Projection (Inches)
2-7/8
Panic Dogging
Prepped For Cylinder Dogging
Model
1285
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Feet per Roll
25
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
3-3/16 in. (81 mm)
Panic Bar Projection
2-7/8 in. (73 mm)
Product Overview
This sleek, contemporary CRL Jackson Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
REPLACEMENT PARTS:
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
