CRL C0VEDU Dark Bronze Aluminum Clamp-On Frame Exterior Glazed Vision Window

1 reviews

Item #: C0VEDU by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL C0VEDU Dark Bronze Aluminum Clamp-On Frame Exterior Glazed Vision Window

1 1 reviews

Item #: C0VEDU by CR Laurence

  • Custom Anodizing Available
  • Clamp-On Frame Vision Window Typically Used Above Built-In Exchange Drawers in Walk-Up Installations
  • Drawings and Specifications are Available Online

Customer to Specify

Customer to Specify

Finish

Dark Bronze

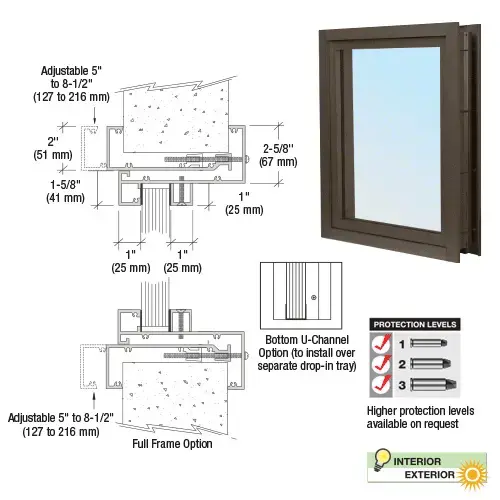

CRL Clamp-On Frame Vision Windows are designed for installation in wall openings having a thickness from 5" to 8-1/2" (127 to 216 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly installed above built-in Transaction Drawers or Package Receivers. Tightening screws on the interior side of the frame clamps the window securely in the opening. Can also be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included
