Dark Bronze Aluminum Clamp-On Frame Interior Glazed Vision Window

Roll over image to zoom in

CRL C0V1DU Dark Bronze Aluminum Clamp-On Frame Interior Glazed Vision Window

Item #: C0V1DU by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Clamp-On Frame Vision Window with Surround Sound System to Allow Natural Voice Transmission
  • Drawings and Specifications are Available Online

Customer to Specify

Customer to Specify

Custor to Specify

Custor to Specify

Finish

Dark Bronze

Size

Specify

Finish/Color

Black Bronze Anodized

Type

Interior Glazed

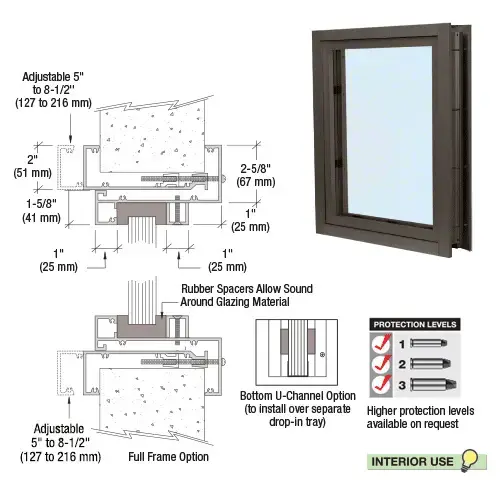

CRL Clamp-On Frame Vision Windows with Surround Sound allow natural voice transmission without an installed speak-thru device. Frame is designed for walls 5" to 8-1/2" (127 to 216 mm) thick. They are not weather tight, and recommended for installation only in interior applications. The frame is uniform on four sides. Tightening screws on the interior side of the frame clamps the window securely in the opening. Vision Windows are typically installed above built-in Exchange Drawers. Can also be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included
Product Warning:
CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

.
