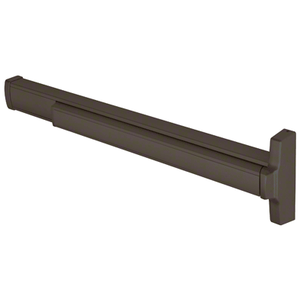

Jackson  Dark Bronze Model 2085E Electric Rod Retraction Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 36" to 48" Door
Qty
+
$1,211.43   /each

Jackson 312085ERG313 Dark Bronze Model 2085E Electric Rod Retraction Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 36" to 48" Door

  • Motorized Rod Retraction
  • Remote Locking and Unlocking Capability
  • Motorized Latch Retraction
  • Fit Door Stiles as Narrow as 1-3/4" (44 mm)
  • For Aluminum or Hollow Metal Doors
  • Ideal for Use with Card Access
  • Fail-Secure Operation
  • Can Be Cut to Size
See Full Product Description
SALE

$1,211.43 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Motorized Rod Retraction
  • Remote Locking and Unlocking Capability
  • Motorized Latch Retraction
  • Fit Door Stiles as Narrow as 1-3/4" (44 mm)
  • For Aluminum or Hollow Metal Doors
  • Ideal for Use with Card Access
  • Fail-Secure Operation
  • Can Be Cut to Size

  • Product Description
  • Technical Details 6
  • Product Reviews 1
  • Product Q&A 4
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Minimum Order

1 Each

Brand

Jackson

Handing

Right Hand-Reverse Bevel

Size

48" (1.22 m)

Type

Electric Latch Retraction Concealed Vertical Rod

Finish

Dark Bronze

  • Motorized Rod Retraction
  • Remote Locking and Unlocking Capability
  • Motorized Latch Retraction
  • Fit Door Stiles as Narrow as 1-3/4" (44 mm)
  • For Aluminum or Hollow Metal Doors
  • Ideal for Use with Card Access
  • Fail-Secure Operation
  • Can Be Cut to Size
CRL Jackson® Model 2085E Electric Rod Retraction Concealed Vertical Rod Panic Exit Devices are UL Listed and manufactured in the Jackson® tradition of high quality and durability. Suitable for use with narrow, medium, and wide stile aluminum doors, these devices are handed, not reversible, and feature dual point latching with top latch and bottom hex bolt, fail-secure operation, remote locking and unlocking capability for use with card readers, key pads etc., motorized* operated latch retraction, and "Soft Touch" smooth quiet action push pad. They are available in dark bronze and satin aluminum anodized finishes. Devices will fit 48" (1.22 m) wide doors, and can be cut down to fit a 36" (914 mm) opening. For doors over 84" (2.13 m) tall order Top Rod Extender #301347 for 12" (305 mm) or #301348 for 24" (610 mm). Devices may be ordered with optional cylinder dogging, which uses a 1-1/8" (29 mm) Mortise Cylinder such as #DC7185SCKA, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" (25 mm) Mortise Cylinder such as #DL2170SCKD with AR MS type cam, along with Cylinder Mounting Pad #30821J. Outside lever access is also available with Jackson® Model 8500LV Outside Lever Trim #8500LV02.
SPECIFICATIONS:
Ships Standard for 48" (1.22 m) Wide Door
Field Sizeable for Use Down to 36" (914 mm) Wide Doors
Wear Points Insulated by Nylon Sleeves and Rollers
Adjusts for Brief or Extended Unlock Mode
24V DC Input
* PRODUCED AFTER 8/15/2016: #301420 Power Supply Recommended.
* PRODUCED BEFORE 8/15/2016: Solenoid Driven - Requires 10 Amp Inrush Power Supply; Jackson® #302616 Power Supply Recommended
ROD DEVICES:
Positive Locking, Spring Loaded Top Latch
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and #30821J Mounting Pad for Keyed Entry
Impact-Top Bolt Series Includes Aluminum Bolts and Guides
MATERIALS:
Body and Push Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel Important Notes: Solenoid Operated Devices produced prior to 8/15/16 are not to be used with compression-sealed hurricane resistant door applications. Motorized Devices produced after 8/15/16 can be used with compression-sealed hurricane resistant door applications.
