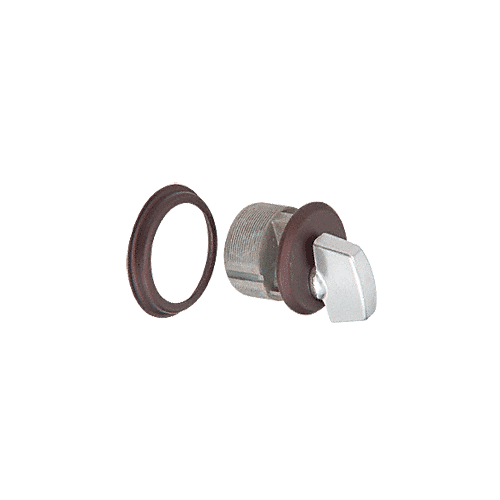

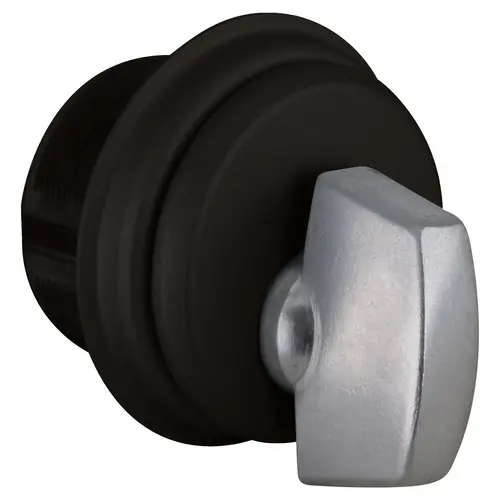

Dark Bronze Mortise With Aluminum Thumbturn Cylinder, Zinc Material, 1" Cylinder Length, 1-5/32" Cylinder Diameter, Dark Bronze Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

CRL DL2172DU Dark Bronze Mortise With Aluminum Thumbturn Cylinder, Zinc Material, 1" Cylinder Length, 1-5/32" Cylinder Diameter, Dark Bronze Finish

Item #: DL2172DU by CR Laurence

Brand: CRL

See reviewsSee reviews
See reviews summary
In Stock

$9.82

/each
SAVE UP TO 0.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2434 units available

Finish: Dark Bronze

Cylinder Material: Aluminum

Aluminum
Bronze
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Constructed from diecast zinc with an aluminum thumbturn, finished in dark bronze for architectural door hardware applications.
  • Features a 1" cylinder length and a 1-5/32" cylinder diameter, designed for standard mortise lock installations.
  • Equipped with an AR MS-type cam, ensuring compatibility with common glass entrance system locking mechanisms.
  • Includes a 3/16" cylinder ring to facilitate proper mounting and alignment within the door rail assembly.
  • Designed as a 5-pin cylinder, allowing for manual lock activation without the requirement of a key.
  • Suitable for use in glass entrance systems, door rails, and side rail security applications.
  • Includes a 13/66" ring thickness, providing the necessary spacing for a flush fit during installation.

Cylinder Length

1

Cylinder Diameter

1-5/32

Finish

Dark Bronze

Cylinder Material

Aluminum

CAM Type

AR MS

Material

Zinc

Includes

3/16" Cylinder Ring

Finish/Color

Dark Bronze

Ring Thickness

13/66"

Product Overview
The Dark Bronze Mortise With Aluminum Thumbturn Cylinder is a component used to activate a lock without the need for a key. This 5-pin cylinder is constructed from diecast zinc and features an aluminum thumbturn. It measures 1" in length and has a 1-5/32" diameter. The cylinder is designed with an AR MS-type cam for compatibility with standard mortise lock setups. The assembly includes a 3/16" cylinder ring to assist with installation. This cylinder is finished in dark bronze, providing a consistent appearance for architectural door hardware applications. The ring thickness is 13/66". This mortise cylinder is intended for use in glass entrance systems, including door rails, side rails, and various U-channel or spider fitting configurations. The 5-pin design allows for manual operation of the locking mechanism from the interior side of the door. The included 3/16" cylinder ring is used to adjust the projection of the cylinder from the door surface, ensuring a proper fit with the door rail or stile. The dark bronze finish is applied to the exterior components to match existing hardware in commercial or architectural settings. This product is a standard replacement or installation component for mortise-style locks requiring thumbturn access.
