CRL 702DU Dark Bronze Vertical Sliding Ticket Window, Aluminum Material, 18" X 3-1/2" Service Opening, 19-1/4" X 8-1/2" Overall Size, Dark Bronze Finish
Item #: 702DU by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from extruded aluminum with a dark bronze finish and nylon pile weather stripping for draft prevention.
- Measures 19-1/4" x 8-1/2" overall with a service opening of 18" x 3-1/2" for efficient ticket or document exchange.
- Designed for 1/4" thick glass installations, requiring a specific glass cut-out for proper mounting.
- Features a vertical sliding mechanism with spring-tensioned guides to hold the panel in the raised position.
- Includes two spring-loaded knob latches to secure the window in the closed position for service environments.
- Suitable for hospitality and display shelving systems, allowing installation above existing countertops without surface alteration.
- Comes with an installation template and instructions to assist with the required glass fabrication and mounting process.
Opening Size
18 x 3-1/2 in (457 mm x 89 mm)
Service Opening Size
18" x 3-1/2" (457 x 89 mm)
Overall Size (A X B)
19-1/4" x 8-1/2" (489 x 216 mm)
Overall Size
19-1/4" x 8-1/2" (489 x 216 mm)
Service Opening Size (C x D)
18" x 3-1/2" (457 x 89 mm)
Finish
Dark Bronze
Material
Aluminum
Width
19-1/4
Window Style
Vertical Slider
Glazing Thickness
1/4
Frame Width
5/8
Frame Depth
1
Finish/Color
Black Bronze Anodized
Height
8-1/2
Product Overview

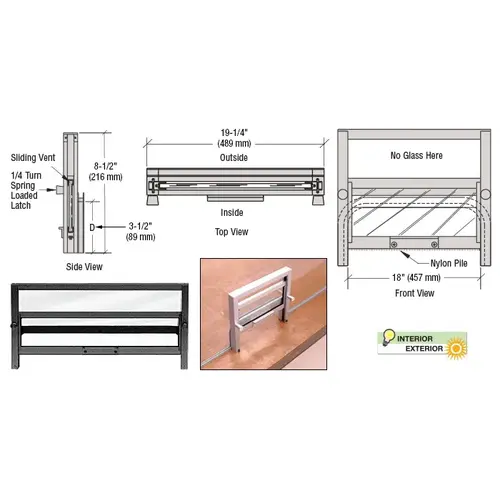

The Dark Bronze Vertical Sliding Ticket Window is a service window designed for installation above countertops. Constructed from extruded aluminum with a dark bronze finish, this window features a vertical sliding lower panel glazed with 1/4" clear glass. The unit includes spring-tensioned guides that hold the panel in the raised position and two spring-loaded knob latches to secure the window when closed. Pile weather stripping along the lower frame helps prevent drafts. The frame has a depth of 1" and a width of 5/8", protruding 1" on the clerk's side. The overall size is 19-1/4" x 8-1/2", with a service opening of 18" x 3-1/2". This window is designed for installation in 1/4" thick glass and requires glass fabrication with a cut-out. A template and installation instructions are included.
