CRL Shallow Division Bar with Vinyl is lightweight extruded aluminum framing sections used vertically or horizontally for small fixed window units. A division bar consists of a face member which has an extruded spline with threads for receiving exposed fasteners inserted through the back member which has holes drilled in it. The back and face members are screwed together after the glazing infill is installed to form the window. Each piece of CRL Shallow Division Bar includes 100 ft (30.5 m) of glazing vinyl and 20 each 1/4-20 x 1" (25.4 mm) Pan Head Phillips Machine Screws.
Product Warning:
Must ship common carrier if over 98" (2.49m) length.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

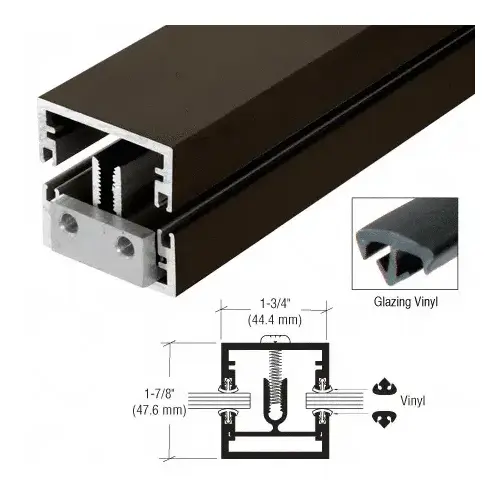

CRL DB27422 Dark Bronze Shallow 1-3/4" x 1-7/8" Division Bar with Vinyl - 24 ft
Item #: DB27422 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Supplied with Vinyl and Screws
- Back Bar is Punched 12" (305 mm) on Center
Length
24' (7.3 m)
Size
1-3/4" x 1-7/8" (44.5 x 48 mm)
Finish
Dark Bronze Anodized
Type
Shallow W/Aluminum Framing
Material
Extruded Aluminum
Screw Size
1/4-20 x 1"
Width
1-3/4
Includes
Vinyl and Screws
Finish/Color
Dark Bronze Anodized
Length (Feet)
24
Height
1-7/8
Product Overview
CRL Shallow Division Bar with Vinyl is lightweight extruded aluminum framing sections used vertically or horizontally for small fixed window units. A division bar consists of a face member which has an extruded spline with threads for receiving exposed fasteners inserted through the back member which has holes drilled in it. The back and face members are screwed together after the glazing infill is installed to form the window. Each piece of CRL Shallow Division Bar includes 100 ft (30.5 m) of glazing vinyl and 20 each 1/4-20 x 1" (25.4 mm) Pan Head Phillips Machine Screws.
Product Warning:
Must ship common carrier if over 98" (2.49m) length.
