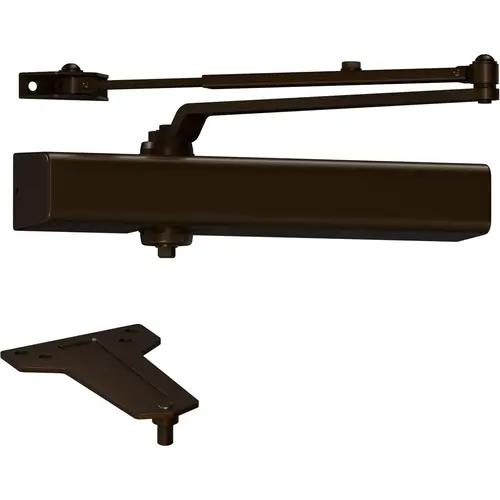

DCM1000.STD.SLIM.RW/PA.DKBRZ Non-Hold Open Door Closer - Dark Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dexter DCM1000-STD-SLIM-RW/PA DB DCM1000.STD.SLIM.RW/PA.DKBRZ Non-Hold Open Door Closer - Dark Bronze

Item #: DCM1000-STD-SLIM-RW/PA DB by Dexter by Schlage

UPC #: 043156535866

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$95.00

/each
SAVE UP TO 9.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 59 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Grade 1, UL / UL 10C Listed (non-hold open arms), ADA compliant at size 1
  • Adjustable spring size 1-6
  • 12" x 3⁄4" mounting hole pattern
  • Staked, independent adjustment values: sweep speed, latch speed, and back-check

Grade

ANSI/BHMA Grade 1

Type

Surface

Hand

Non-Handed

Color

Dark Bronze Painted

Color Code

690/US20

Mounting Style

Tri Mount

Hold Open

Without Hold Open

Closer Size

1-6

Mounting Location

Push or Pull Side

Package Qty

1

Special Marks

Complies with ADA accessibility guidelines

Finish

Dark Bronze

Series

DCM1000 Series

Spring Size

1-6

Function

RW/PA-Regular Arm w/PA Shoe

Mount

Push or Pull Side

Finish Description

Dark Bronze Painted

Product Type

Door Closer/Holder/Stop

Mounting Type

Push or Pull Side

Application

Commercial

Handing

Non-Handed

Warranty

5 year limited warranty

ADA Compliant

YES

Finish Family

Dark Bronze

Closer Arm Configuration

RW/PA

Product Material

Cast Aluminum

Closer Cover

Slim Plastic Cover

Standards

Grade 1 Compliant; UL 10C Listed

Closer Arm Type

RW/PA

Function Family

Non Hold Open Door Closer

Mounting Hole Size

12" x 3/4"

Fastener Type

Self-Tapping Machine Screws

Features

Staked Independent Adjustment Values: Sweep Speed, Latch Speed and Back Check

Door Size

2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Allegion

Closer Hold-Open

false

Box Dimensions (L x W x H)

13.9 x 5.5 x 2.91

Sub-Series

DC_Surface Mounted Closers_dexter_commercial_10

Door Thickness

1-3/4 inch

Alternate Part Number-1

156348

Package Height

2.91"

Package Length

13.9"

Package Width

5.5"

Item Weight

7.83 lbs

Height

3

Length

14

Width

5.5

Product Overview
DCM1000.STD.SLIM.RW/PA.DKBRZ Non-Hold Open Door Closer - Dark Bronze
