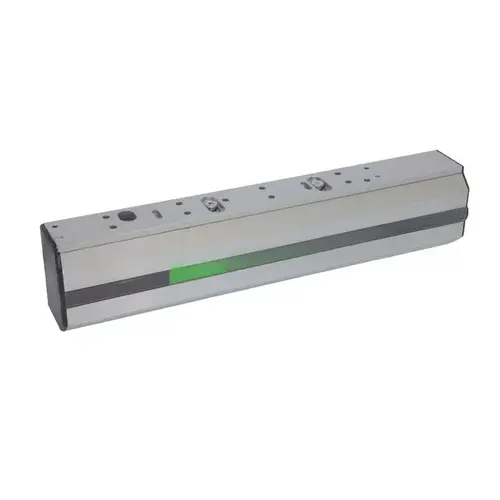

RCI DE831028 Delayed Egress Magnetic Lock with 960 Switch Brushed Anodized Aluminum Finish

Item #: DE831028 by RCI

Brand: RCI

See reviewsSee reviews
See reviews summary
In Stock

$1,356.17

1,756.00 /each
SAVE UP TO 135.62
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available

Option: With External Sounder

With Built-in Sounder
With External Sounder
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Finish

Brushed Anodized Aluminum

Voltage

12V DC, 24V DC

Options

Bond Sensor, Nuisance Delay, Time Release

Holding Force

1200 lbs

Alternate Part Number-1

146134

Finish code

28

Mounting

Surface Mount

Fail Status

Fail Unlocked

Maglock Type

Delayed Egress, Single Door

Hazardous Material

No

No of inners

1

Fail Safe / Fail Secure

Fail-Safe

Duty Level

Heavy Duty

Product Dimension

10-13/16" x 2-7/8" x 2-1/8"

Option

With External Sounder

Electronic

Yes

Product Overview
RCI DE8310 Delayed Egress

The DE8310 Delayed Egress all-in-one lock can detect when pressure is applied to a door and can be field selected with a release delay of 15 or 30 seconds. This perimeter door solution is unique in that there is no need to replace existing door hardware, making it an easy and affordable access solution. The RCI DE8310 includes an external alarm sounder, keyswitch for reset and override, and a building code sign for single outswinging doors. The RCI DE8310-S includes a built-in sounder rather than the external sounder in the base unit. This electromagnetic lock series can be monitored locally or remotely through relay outputs. It is ideal for applications requiring loss prevention, life safety, and traffic control.

Main Features:

  • Built-in sensor detects when pressure is applied to outward swinging doors no need to replace existing door hardware
  • Field-selectable 15 or 30 second release delay with field-selectable 0 to 3 second nuisance delay
  • Unique highly visible red/green light panel indicates status of door (local)
  • Includes 960 Keyswitch for reset and override, Building Code Sign and base unit (DE8310) includes a 914 External Sounder
  • Dry contact SPDT and DPDT relays provided for local and/or remote monitoring
  • Keyhole mounting for ease of installation
  • Convenient plug-in wiring harnesses
  • Easy-access wiring cavity
  • Stabilizing 4-bolt drop stop" mounting
  • Surge protection
