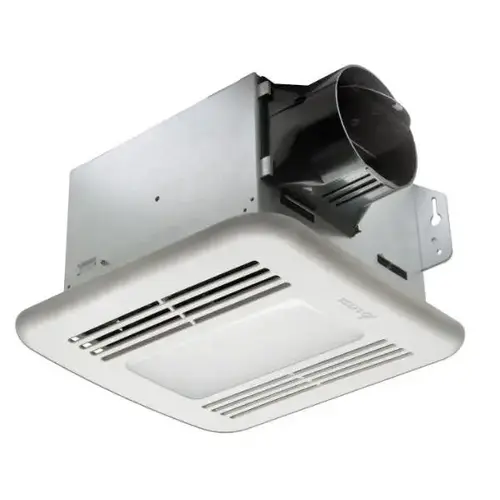

Delta Electronics MFG #GBR80HLED Breezgreenbuilder 80 Cfm Dual Speed Fan With Humidity Sensor
Item #: MFG #GBR80HLED by Delta Electronics
Brand: Delta Electronics
UPC #: 885917001964
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Delta BreezGreenBuilder 80 CFM Dual Speed Fan/Dimmable LED Light w/Adj. Humidity Sensor
- 80 Cfm Dual Speed Fan For Spaces Up To 80 Sq. Ft.
- Ul And Cul Listed For Ceiling Mount Installation
- Ul And Cul Listed For Tub/Shower Enclosure When Used With Gfci-Protected Branch Circuit Wiring
- Brushless Dc Motor Outlasts Typical Ac Motors By 2-1/2x
- Very Quiet At 0.8 Sones
- Energy Star -Qualified
- Dimmable Led Light (Included)
- Built-In Adjustable Humidity Sensor So That Fan Runs At Full Speed (80 Cfm) When Humidity Is Above The User-Adjustable Set-Point And Runs Continuously At A Pre-Set Lower Level (0 Or 50 Cfm) When Humidity Is Below The Set-Point.
- Compact Housing For Easy Retrofit And Replacement Of Older Bath Fans
- Housing Size 8-1/4" X 8" X 5-3/4"
- 4" Duct
- MFG# MFG #GBR80HLED
ENERGY STAR® Qualified
Yes
MADE IN THE USA
No
Package Quantity
1
Wattage
11 W
Vent Type
Vented
UL Listed
Yes
Grill Color
White
Amperage
0.33 Amp
Assembled Product Depth
10.75 in.
Includes
Hardware,Light Bulb
AbilityOne
No
ADA Compliant
No
UNSPSC
40101604
Recommended Use
Commercial Use
Connection Type
False
Voltage
120 V
Assembled Product Height
5.75 in.
Exhaust Fan Features
Light Included, Humidity Sensing
Duct Shape
Round
Assembled Product Width
10.75 in.
Outlet Shape
Square
GSA Approved
No
Mount Type
Ceiling
TAA/BAA Compliant
Yes
Model
GBR80HLED
Collection
BreezGreenBuilder
Energy Star
Yes
Maximum CFM
80
Wattage (watts)
4.4 - 13
Duct Size
4"
Product Depth
10-3/4"
Product Height
5-3/4"
Product Width
10-3/4"
Sones
0.5 - 1.5
Static Pressure
0.1 - 0.25
Duct Diameter
4"
LED Main Light (Watt)
13
Product Overview
The Builder s Choice for Green Construction.
Delta BreezGreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a Dimmable LED Light option as well as humidity sensing option.
BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price.
Features
- 80 CFM fan for spaces up to 80 Sq. Ft.
- Brushless DC Motor outlasts typical AC motors by 2-1/2.
- Very quiet at 0.8 sones.
- Energy star -qualified.
- 13-Watt Dimmable LED light (included), Dimmer switch not included.
- Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements.
- Built-in adjustable humidity sensor so that fan runs at full speed (80 CFM) when humidity is above the user-adjustable set-point and runs continuously at a pre-set lower level (0 or 50 CFM) when humidity is below the set-point.
- Housing size 8-1/4" x 8" x 5-3/4".
- 4" duct.
- UL and cUL listed for ceiling mount installation.
- UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
- 3 yr. limited warranty.
