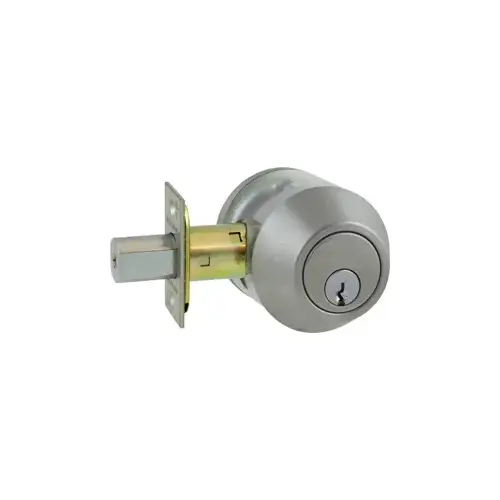

Dexter Commercial Single Cylinder Grade 2 Deadbolt with C Keyway; 4 Way Bolt; and 2-3/4" Square Strike Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dexter DB20004WBSCT626KDC Dexter Commercial Single Cylinder Grade 2 Deadbolt with C Keyway; 4 Way Bolt; and 2-3/4" Square Strike Satin Chrome Finish

Item #: DB20004WBSCT626KDC by Dexter Commercial

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$138.84

/each
SAVE UP TO 13.88
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Satin Chrome

Backset

2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner

Function

SCT-Single Cylinder Deadbolt

Series

DB2000 Series

Grade

ANSI/BHMA Grade 2

Keyway

Schlage C

Strike

Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner

Cylinder Type

Conventional

Finish Description

Satin Chrome

Keyblank Grouping

DEXT-SCHL-C-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Auxiliary Lock

Latch Type

Deadbolt

Strike Type

Square Corner Lipless

Keying Charges

CCAM

Strike Description

1-1/8" X 2-3/4" SQUARE-CORNER LIPLESS

Box Length

5.0000

Box Width

3.7000

Box Height

2.8000

Warranty

5 Year

Color Code

626/US26D

ADA Compliant

No

Finish Family

Satin Chrome

Keying Type

Keyed Random

Strike Size

1-1/8" x 2-3/4"

Deadbolt Type

Drive-In

Standards

UL Listed 3-Hour

Cylinder Type Used

Conventional

Function Family

Single Cylinder Deadbolt

Manufacturer Parent

Allegion

Box Dimensions (L x W x H)

5 x 3.7 x 2.8

Latch Housing Size

2-3/8" to 2-3/4"

Sub-Series

CL_Deadbolt_Locks_dexter_commercial_5

Alternate Part Number-1

173033

Strike Dimension

1-1/8" x 2-1/4"

No of inners

1

Door Range

1-3/8" to 1-3/4"

No Of Pins

6 Pin Cylinder

Door Thickness

1-3/8" to 1-3/4"

Finish code

626

Material

Brass and Bronze

Cross Bore Size

2-1/8" Bore

Latch Faceplate Dimension

1-1/8" x 2-3/4"

Manufacturer Warranty

Limited 5 Year Mechanical Warranty

Hazardous Material

No

Product Overview
DB2000 SeriesGrade 2 deadbolts

Allegion’s newest product line, Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.

Specifications:
  • Grade 2, UL listed 3-hour
  • 1 3/8" – 1 3/4" Conventional cylinder door range; 1 5/8" - 2" SFIC door range
  • All functions include 2 3/8" - 2 3/4" universal square corner latch (30-253) and 1 1/8" x 2 3/4" square corner lipless strike
  • Accommodates Schlage conventional 6-pin (keyed 6) in Schlage C keyway, keyed different and SFIC cylinders
Functions: SCT:
  • Single cylinder x thumbturn
DCT:
  • Double cylinder
Finishes:
  • 605
  • 613
  • 626
  • 630*
  • * Available Q1 2020
Cylinders: KDC:
  • Conventional 6-pin, Schlage C, KD
SFIC:
  • SFIC
