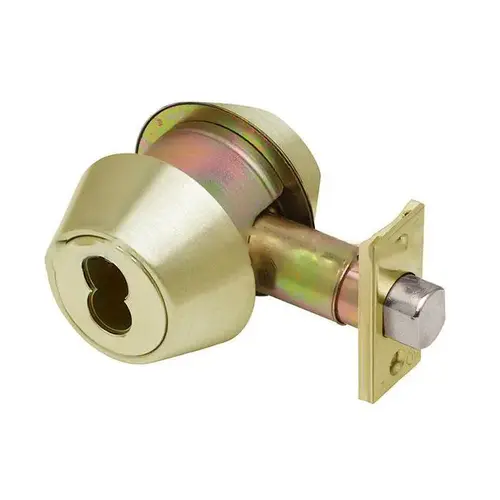

Dexter DB2000SCT605SFIC Single Cylinder Deadbolt, Auxiliary Lock, ANSI And Bhma Grade 2, 2-3/8" To 2-3/4" Backset, Bright Polished Brass Finish
Item #: DB2000SCT605SFIC by Dexter Commercial
Brand: Dexter
UPC #: 043156556656
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed as an ANSI/BHMA Grade 2 auxiliary lock with a bright polished brass finish for residential and commercial door use.
- Features an adjustable backset of 2-3/8" or 2-3/4" and fits door thicknesses ranging from 1-3/8" to 1-3/4".
- Designed for 2-1/8" cross bore preparation and includes a 1-1/8" x 2-3/4" square corner lipless strike plate.
- Single cylinder deadbolt function with an interior thumbturn for manual locking and unlocking of the door.
- UL listed for 3-hour fire ratings, ensuring compliance with standard safety requirements for door hardware.
- Prepared for SFIC cylinders and accommodates 6 or 7 pin configurations for versatile keying options.
- Includes a universal square corner latch and round rose trim for installation on standard door configurations.
Finish
Bright Polished Brass
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Function
SCT-Single Cylinder Deadbolt
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Series
DB2000 Series
Grade
ANSI/BHMA Grade 2
Cylinder Type
Less SFIC
Finish Description
Bright Polished Brass
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Latch Type
Square Corner
Strike Type
Square Corner Lipless
Strike Description
1-1/8" X 2-3/4" SQUARE-CORNER LIPLESS
Box Length
5.0000
Box Width
3.7000
Box Height
2.8000
Strike Size
1-1/8" x 2-3/4"
Manufacturer Parent
Allegion
Sub-Series
CL_Deadbolt_Locks_dexter_commercial_9
ADA Compliant
No
Box Dimensions (L x W x H)
5 x 3.7 x 2.8
Function Family
Single Cylinder Deadbolt
Standards
UL Listed 3-Hour
Number of Pins
6 or 7
Color Code
605/US3
Warranty
5 Year
Cylinder Type Used
Less SFIC
Latch Housing Size
2-3/8" to 2-3/4"
Finish Family
Polished Brass
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited 5 Year Mechanical Warranty
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
605
Latch Faceplate Dimension
1-1/8" x 2-3/4"
No of inners
1
Keyed
Yes
Cylinder
SFIC Prep Less Core
Standard Strike
1-1/8" x 2-3/4", Square Corner
Door Thickness Range
1-3/8" To 1-3/4"
Standard Latch
2-3/8" - 2-3/4" universal square corner latch (p/n 30-253)
Product Overview
The DB2000 Single Cylinder Deadbolt is an auxiliary lock designed for residential and commercial door applications. This deadbolt features a single cylinder with a thumbturn for operation. It is constructed to meet ANSI/BHMA Grade 2 standards and is UL listed for 3-hour fire ratings. The lock is designed for doors with a thickness range of 1-3/8" to 1-3/4" and requires a 2-1/8" cross bore. It includes a universal square corner latch, part number 30-253, that adjusts for backsets of 2-3/8" or 2-3/4". The strike plate measures 1-1/8" x 2-3/4" and features a square corner lipless design. This model is prepared for SFIC cylinders, though the core is not included. The deadbolt utilizes a 6 or 7 pin configuration and is finished in bright polished brass, providing a classic aesthetic for door hardware. This product is backed by a limited 5-year mechanical warranty from the manufacturer, Allegion, and is suitable for various door hardware setups.
