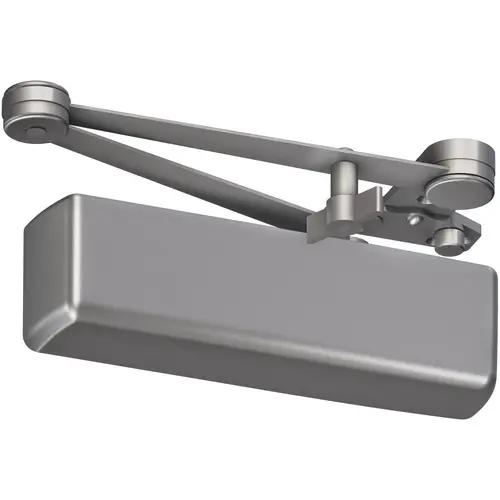

DCH4000 Heavy Duty Door Closer, Aluminum Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dexter Commercial DCH4000STDFULLDSHOALUM DCH4000 Heavy Duty Door Closer, Aluminum Painted

Item #: DCH4000STDFULLDSHOALUM by Dexter Commercial

UPC #: 043156976690

See reviews See reviews

In Stock $184.28 /each

SAVE UP TO 18.43

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Function

DS/HO-Dead Stop Arm with H-O

Finish

Aluminum Painted

Mount

Parallel Arm (Push Side)

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

Grade

ANSI/BHMA Grade 1

Spring Size

1-6

Application

Commercial

Hand

Non-Handed

Handing

Non-Handed

Warranty

5 year limited warranty

Mounting Type

Parallel Arm (Push Side)

Door Thickness

1-3/4 inch

ADA Compliant

YES

Finish Family

Aluminum

Closer Arm Configuration

DS/HO

Product Material

Cast Iron

Closer Cover

Full Plastic Cover

Standards

Grade 1 Compliant; UL 10C Listed

Closer Arm Type

DS/HO

Function Family

Hold Open Door Closer

Mounting Hole Size

5" x 2-1/4"

Features

Staked Independent Adjustment Values: Sweep Speed, Latch Speed and Back Check

Door Size

2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)

Maximum Door Opening

180°

Closer Size

1-6

Manufacturer Parent

Allegion

Closer Hold-Open

true

Box Dimensions (L x W x H)

14.7 x 5.3 x 4.1

Sub-Series

DC_Surface Mounted Closers_dexter_commercial_2

Alternate Part Number-1

168556

DCH4000 SeriesHeavy duty surface door closers

Allegion’s newest product line, Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.

Specifications:
  • Grade 1 compliant, UL 10C Listed (non-hold open arms),ADA compliant at size 1
  • Adjustable spring size 1-6
  • 5" x 2 1/4" mounting hole pattern
  • Staked, independent adjustment values: sweep speed, latch speed and back-check
  • Single piece, cast iron body
  • Universal hardware pack
Closers: DCH4000-STD-FULL-RW/PA-ALUM:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - Rw/PA
  • Finish - ALUM
DCH4000-STD-FULL-HW/PA-ALUM:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - Hw/PA
  • Finish - ALUM
DCH4000-STD-FULL-DS-ALUM:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - DS
  • Finish - ALUM
DCH4000-STD-FULL-DS/HO-ALUM:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - DS/HO
  • Finish - ALUM
DCH4000-STD-FULL-RW/PA-DKBRZ:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - Rw/PA
  • Finish - DKBRZ
DCH4000-STD-FULL-HW/PA-DKBRZ:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - Hw/PA
  • Finish - DKBRZ
DCH4000-STD-FULL-DS-DKBRZ:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - DS
  • Finish - DKBRZ
DCH4000-STD-FULL-DS/HO-DKBRZ:
  • Cylinder type - STD
  • Cover - Full
  • Arm function - DS/HO
  • Finish - DKBRZ
Arm types: Regular arm (Rw/PA):
  • Non-handed, forged, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
Hold-open arm (Hw/PA):
  • Non-handed, forged, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
Dead stop arm (DS):
  • Non-handed, forged, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
Dead stop hold-open arm (DS/HO):
  • Non-handed, forged, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold open function.
Finishes:
  • ALUM/689
  • DKBRZ/695
