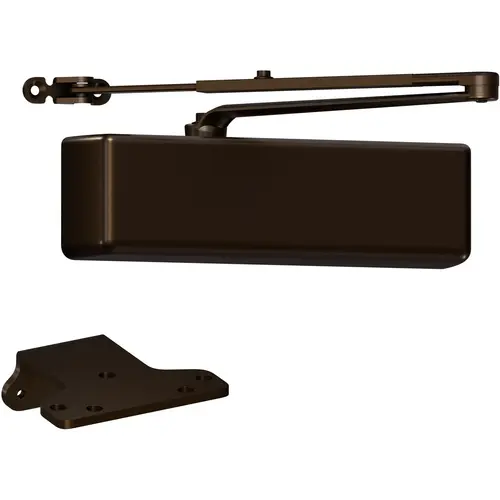

Dexter Commercial DCH4000STDFULLRWPADKBRZ DCH4000 Heavy Duty Door Closer, Dark Bronze Painted
Item #: DCH4000STDFULLRWPADKBRZ by Dexter Commercial
UPC #: 043156976713
In Stock $146.80 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Dark Bronze Painted
Function
RW/PA-Regular Arm w/PA Shoe
Mount
Push or Pull Side
Finish Description
Dark Bronze Painted
Product Type
Door Closer/Holder/Stop
Grade
ANSI/BHMA Grade 1
Spring Size
1-6
Application
Commercial
Hand
Non-Handed
Handing
Non-Handed
Warranty
5 year limited warranty
Mounting Type
Push or Pull Side
Door Thickness
1-3/4 inch
ADA Compliant
YES
Finish Family
Dark Bronze
Closer Arm Configuration
RW/PA
Product Material
Cast Iron
Closer Cover
Full Plastic Cover
Standards
Grade 1 Compliant; UL 10C Listed
Closer Arm Type
RW/PA
Function Family
Non Hold Open Door Closer
Mounting Hole Size
5" x 2-1/4"
Features
Staked Independent Adjustment Values: Sweep Speed, Latch Speed and Back Check
Door Size
2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)
Maximum Door Opening
180°
Closer Size
1-6
Manufacturer Parent
Allegion
Closer Hold-Open
false
Box Dimensions (L x W x H)
14.7 x 5.3 x 4.1
Sub-Series
DC_Surface Mounted Closers_dexter_commercial_5
Alternate Part Number-1
168561
Allegion’s newest product line, Dexter Commercial Hardware, provides the locksmith customer with a competitive option for locks, exits, and closers. With over 200 SKUs of Grade 1, Grade 2, and residential grade products, Dexter Commercial Hardware is your solution for basic, cost constrained jobs.
Specifications:- Grade 1 compliant, UL 10C Listed (non-hold open arms),ADA compliant at size 1
- Adjustable spring size 1-6
- 5" x 2 1/4" mounting hole pattern
- Staked, independent adjustment values: sweep speed, latch speed and back-check
- Single piece, cast iron body
- Universal hardware pack
- Cylinder type - STD
- Cover - Full
- Arm function - Rw/PA
- Finish - ALUM
- Cylinder type - STD
- Cover - Full
- Arm function - Hw/PA
- Finish - ALUM
- Cylinder type - STD
- Cover - Full
- Arm function - DS
- Finish - ALUM
- Cylinder type - STD
- Cover - Full
- Arm function - DS/HO
- Finish - ALUM
- Cylinder type - STD
- Cover - Full
- Arm function - Rw/PA
- Finish - DKBRZ
- Cylinder type - STD
- Cover - Full
- Arm function - Hw/PA
- Finish - DKBRZ
- Cylinder type - STD
- Cover - Full
- Arm function - DS
- Finish - DKBRZ
- Cylinder type - STD
- Cover - Full
- Arm function - DS/HO
- Finish - DKBRZ
- Non-handed, forged, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
- Non-handed, forged, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
- Non-handed, forged, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
- Non-handed, forged, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold open function.
- ALUM/689
- DKBRZ/695
