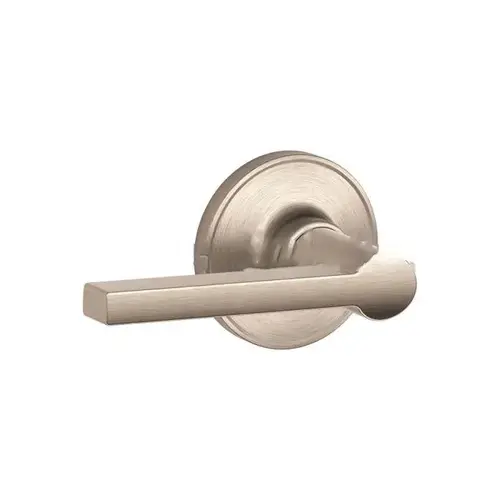

Schlage Residential J10FSOL619 Passage Lock Fire Rated Solstice Lever with 16059 Latch and 10101 Strike Satin Nickel Finish
Item #: J10FSOL619 by Dexter by Schlage
UPC #: 043156195589
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 3
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
Lifetime Limited Mechanical & Finish Warranty
Color Code
619/US15
Function
10-Hall/Closet
Door Thickness
1-3/8" to 1-3/4"
Strike
Full Lip 2-1/4 Inch, Radius Corner
Finish Description
Satin Nickel
ANSI Function
F75
Latch Type
Spring
Strike Type
Full Lip
ADA Compliant
No
Finish Family
Satin Nickel
Lever Style
SOL-Solstice
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
Round Rose
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3; UL Listed
Faceplate Dimension
1/4"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Type
Cylindrical Lock
Series
J Series
Manufacturer Parent
Allegion
Lever Style Family
Straight Lever
Sub-Series
J10F-SOL
Finish
Satin Nickel
Dimension
4-1/2" Lever Length and 2-3/8" Projection with 2-5/8" Diameter Rose
Material
Zinc
Handing
Reversible
Fire Rated
Yes
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
UL Fire Rated
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
619
Design
Solstice
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Solstice Lever
No of inners
1
Product Overview
J SeriesLevers
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Available Functions: J10/F75 - Hall & Closet*:- Both levers always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside lever
- Push-button locking. Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- ADA Compliant
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corner
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
