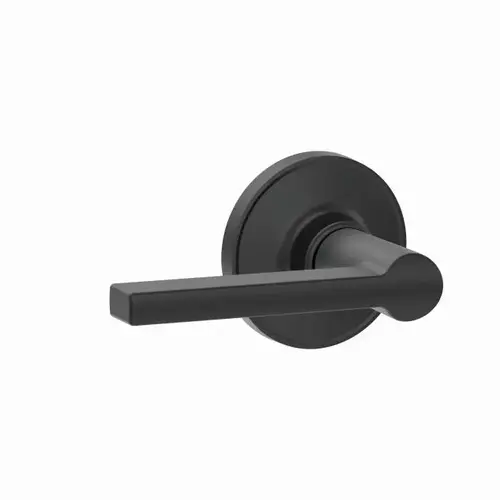

Dexter J10FSOL622 Schlage J Dexter Series Passage Lock Fire Rated Solstice Lever with 16254 Latch and 10101 Strike Matte Black Finish
Item #: J10FSOL622 by Dexter by Schlage
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 3
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
Lifetime Limited Mechanical & Finish Warranty
Color Code
6202/US19
Function
10-Hall/Closet
Door Thickness
1-3/8" to 1-3/4"
Strike
Full Lip 2-1/4 Inch, Radius Corner
Finish Description
Matte Black
ANSI Function
F75
Latch Type
Spring
Strike Type
Full Lip
ADA Compliant
No
Finish Family
Black
Lever Style
SOL-Solstice
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
Round Rose
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3; UL Listed
Faceplate Dimension
1/4"
Function Description
Latch retracted by knobs/levers at all times
Function Family
Passage/Hall/Closet
Product Type
Cylindrical Lock
Series
J Series
Manufacturer Parent
Allegion
Lever Style Family
Straight Lever
Sub-Series
J10F-SOL
Finish
Matte Black
Dimension
4-1/2" Lever Length and 2-3/8" Projection with 2-5/8" Diameter Rose
Material
Zinc
Handing
Reversible
Fire Rated
Yes
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
UL Listing Type
3 Hour UL Rated
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
622
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Solstice Lever
No of inners
1
Product Overview
Schlage J Dexter Series Passage Lock Fire Rated Solstice Lever with 16254 Latch and 10101 Strike Matte Black Finish
