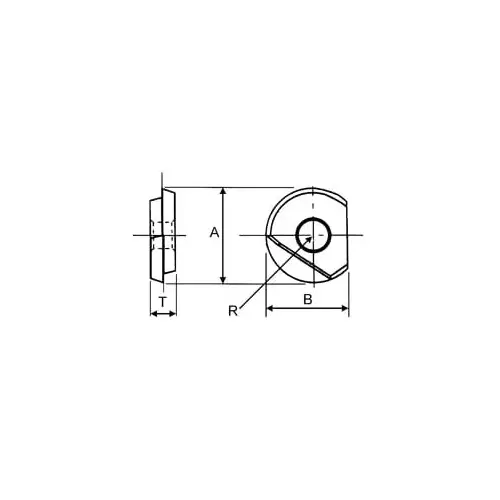

Dijet BME-0250A DH103 Milling Insert: JC8003, Solid Carbide Coated

Item #: BME-0250A DH103 by Dijet

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$28.22

/each
SAVE UP TO 2.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material Application

Steel

Length (mm)

4.98

ANSI Code

BME-0250A DH103

Thickness (mm)

1.98

Insert Material

Solid Carbide

Series

BME

Coating Process

PVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.1250

Length (Decimal Inch - 4 Decimals)

0.1960

Manufacturers Catalog Number

BME-0250A DH103

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.0780

Thickness (Inch)

5/64

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (Inch)

1/4

Width (mm - 2 Decimals)

6.35

Coating Classification

PVD

Insert Holding Method

Screw

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/8

Insert Shape

Ball Nose Rounded Tip

Chip Breaker

DH

Insert Style

BME

Insert Size Code

0250A

Hole Diameter (Decimal Inch)

0.1250

Inscribed Circle (Inch)

1/4

Manufacturer Grade

DH103

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Length Range (Decimal Inch)

0.0000 to 0.3200

Thickness Range (Decimal Inch)

0.0000 to 0.1000

Inscribed Circle (mm)

6.35

Corner Radius (mm)

3.18

Iso Code

BME-0250A DH103

Product Overview
Milling Insert: JC8003, Solid Carbide 0.078" Thick
