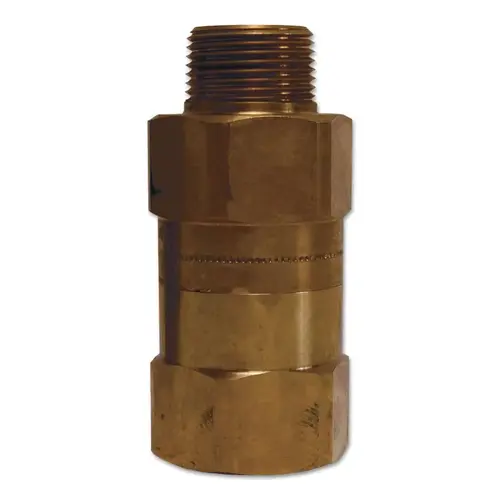

DIXON VALVE SCVR6 Safety Shut-Off Valves, 3/4 in (NPT) Inlet, Male, Brass
Item #: SCVR6 by DIXON VALVE
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
Brass
Type
Shut-Off Check Valve
Inlet Size
3/4 in (NPT)
Inlet Type
Male Thread
Outlet Size
3/4 in (NPT)
Outlet Type
Female Thread
Stem Material
Stainless Steel
Designated Fluid
Air
Nominal Diameter
1 1/2 in
Body Material
Brass
UNSPSC
40141600
Connection Type
Male
Nom. Width
1 1/2 in
Nom. Length
3 9/16 in
Operating Temp. [Max]
250 °F
Flow [Max]
128 CFM
Flow [Min]
112 CFM
Operating Pressure [Max]
350 psi
Product Overview
High flow valve to provide optimum performance
Controls excess air flow (SCFM) in only one direction
Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip.
Controls excess air flow (SCFM) in only one direction
Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip.
