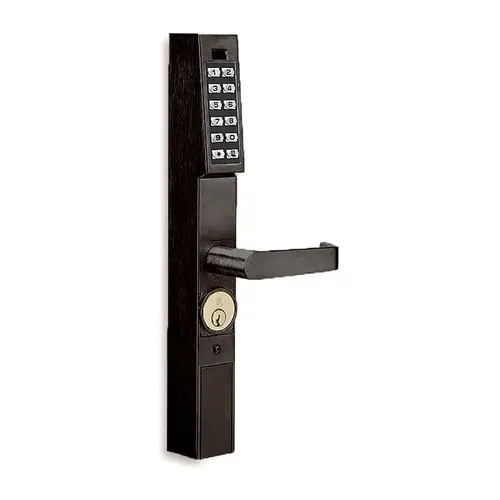

Alarm Lock DL1225/10B2 DL1225 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Turnpiece Exit Trim Oil Rubbed Dark Bronze

Item #: DL1225/10B2 by Alarm Lock

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Add keyless convenience to mechanical latch locks from Trilogy’s allmetal, vandal-resistant 12-button keypad and/or automatic timedscheduled locking/unlocking and audit trail with 1300 Series •
  • Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks
  • DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable
  • DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C) • Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
  • Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
  • Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”, 1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/ Russwin, Yale, Schlage, Medeco.)
  • Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
  • Non-handed; fully field-reversible
  • Two finishes US26D satin & 10B Durondic

Base Material

Bronze

Software

Optional

Reader Technology

Keypad Only

Programmer

Optional

Package Qty

1

Lock Platform

Narrow Stile Trim Deadbolt

Keypad Type

Electronic

Number of users

100

Package Width

9.875"

Package Volume

388.828125

Package Length

17.5"

Package Height

2.25"

Cylinder Type

Conventional Cylinder

Door Thickness

1-3/4 In.

Color Code

613/US10B

Color

Dark Oxidized Satin Bronze Oil Rubbed

Power

Lithium 3V

Grade

Grade 1

Finish

Oil Rubbed Dark Bronze

Keyway

Schlage C

Finish Description

Oil Rubbed Dark Bronze

Keyblank Grouping

SCHL-C-6-1

Product Type

Access Control

Product Overview
DL1225 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Exit Trim with Turnpiece, for Adams Rite 4070, MS1850S, MS1950 Series Deadbolt, in US10B Duronodic
DL1225 Series – Aluminum door retrofit outside trim. Works with Adams Rite® 4700, MS1850S, MS1950 series deadbolt. 100 user codes, Master, Manager, basic user and 3 one time user codes.


SPECIFICATIONS
  • Door thickness: Supports stile 1-3/4" only
  • Backset: Supports 31/32", 1-1/8" and 1-1/2"
  • Latch: Works with Adams Rite® 4700, MS1850S, MS1950 series deadbolt
  • Handing: Non-handed
  • Power: Uses 2 DL123A Lithium batteries
  • Keypad: All metal, vandal resistant 12 button keypad supports 3-5 digit PIN codes
  • Cylinder: Supplied with 6 pin standard mortise cylinder SC1 Keyway. Use 1-3/8" or 1-1/2" cylinders
  • Cams: Cam supplied works with generic Alarm Lock cylinder. Other Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent and Schlage. IC type cams for Best, Corbin-Russwin, Medeco, Schlage and Yale are also available
