DL1250 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Knob Exit Trim Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

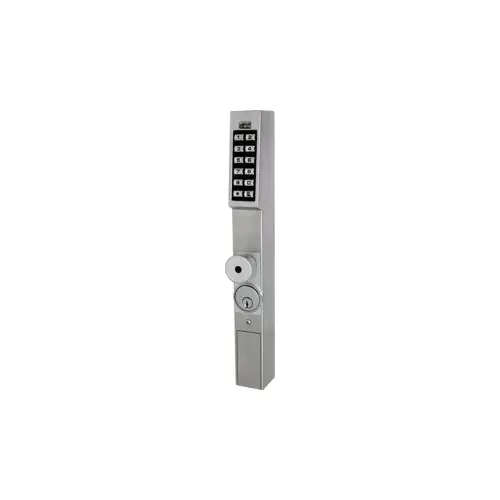

Alarm Lock DL1250/26D2 DL1250 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Knob Exit Trim Satin Chrome

Item #: DL1250/26D2 by Alarm Lock

See reviewsSee reviews
See reviews summary
In Stock

$670.75

/each
SAVE UP TO 67.07

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 63 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Add keyless convenience to mechanical latch locks from Trilogy’s allmetal, vandal-resistant 12-button keypad and/or automatic timedscheduled locking/unlocking and audit trail with 1300 Series •
  • Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series latch locks
  • DL1200 supports 100 3-5 digit PIN user codes, fingertip programmable
  • DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C) • Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
  • Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
  • Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”, 1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/ Russwin, Yale, Schlage, Medeco.)
  • Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
  • Non-handed; fully field-reversible
  • Two finishes US26D satin & 10B Durondic

Package Volume

388.828125

Reader Technology

Keypad Only

Color

Satin Chrome

Grade

Grade 1

Programmer

Optional

Cylinder Type

Conventional Cylinder

Package Qty

1

Package Height

2.25"

Door Thickness

1-3/4 In.

Number of users

100

Package Width

9.875"

Keypad Type

Electronic

Color Code

626/US26D

Lock Platform

Narrow Stile Trim Deadbolt

Software

Optional

Base Material

Brass or Bronze

Power

Lithium 3V

Package Length

17.5"

Finish

Satin Chrome

Finish Description

Satin Chrome

Keyblank Grouping

SCHL-C-6-1

Product Type

Electronic Mortise Lock

Keyway

Schlage C

ADA Approved

False

Keying Charges

CCAM

Alternate Part Number-1

139123

Voltage

2 3V

Handing

Non-Handed

Cylinder Included

Yes

Access Type

Keypad, Standalone

Finish code

US26D

Lock Category

Mortise Lock Trim

Product Overview
DL1250 Series Trilogy Narrow Stile Digital Aluminum Door Retrofit Outside Exit Trim with Knob, for Adams Rite 4070, MS1850S, MS1950 Series Deadbolt, in US26D Satin Chrome
DL1225 Series – Aluminum door retrofit outside trim. Works with Adams Rite® 4700, MS1850S, MS1950 series deadbolt. 100 user codes, Master, Manager, basic user and 3 one time user codes.


SPECIFICATIONS
  • Door thickness: Supports stile 1-3/4" only
  • Backset: Supports 31/32", 1-1/8" and 1-1/2"
  • Latch: Works with Adams Rite® 4700, MS1850S, MS1950 series deadbolt
  • Handing: Non-handed
  • Power: Uses 2 DL123A Lithium batteries
  • Keypad: All metal, vandal resistant 12 button keypad supports 3-5 digit PIN codes
  • Cylinder: Supplied with 6 pin standard mortise cylinder SC1 Keyway. Use 1-3/8" or 1-1/2" cylinders
  • Cams: Cam supplied works with generic Alarm Lock cylinder. Other Standard cams available for Corbin-Russwin, Marks, Arrow, Sargent and Schlage. IC type cams for Best, Corbin-Russwin, Medeco, Schlage and Yale are also available

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
