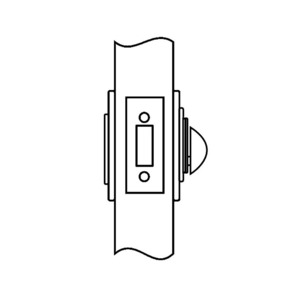

Corbin Russwin DL3060 626 B238 Deadlock Satin Chrome

1 reviews

$209.74 /each In Stock

Item #: DL3060 626 B238 by Corbin Russwin

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

Corbin Russwin DL3060 626 B238 Deadlock Satin Chrome

1 1 reviews

$209.74 /each In Stock

Item #: DL3060 626 B238 by Corbin Russwin

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist
Buy In Bulk

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

  • Handing: Non-handed, except DL3017, which is handed and field reversible.
  • Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
  • Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
  • Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
  • Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
  • Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
  • Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
  • Keys: Two nickel silver standard.
  • Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
  • Warranty: One-year limited.

Package Length

6"

Strike Height

2-3/4 In.

Strike Type

Flat

Color Code

626/US26D

Bolt Protection

1 In.

Package Width

4.25"

Screws

Combination

Package Height

2.5"

Package Qty

1

Latch Backset Dim

2-3/4 In.

Strike Width

1-1/8 In.

Dust Box

None

Fire Rated

No

Hand

Not Handed

Burglar Rated

No

Latch Type

Deadbolt

Function

60-Thumbturn x Blank Deadbolt

Color

Satin Chrome

Package Volume

63.75

Thickness

1-3/4 In. - 2-1/4 In.

Thumbturn x Blank, Satin Chrome

Features Handing: Non-handed, except DL3017, which is handed and field reversible. Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes. Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm) Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high. Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes. Keys: Two nickel silver standard. Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC) Warranty: One-year limited.

The DL3000 Series is non handed and available in various finishes.
