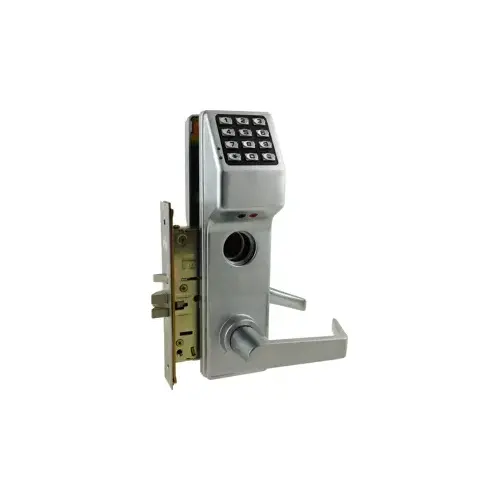

Alarm Lock DL3500CRL US26D DL3500 Series Trilogy High Security Mortise Classroom Audit Trail Digital Lock, Satin Chrome
Item #: DL3500CRL US26D by Alarm Lock
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 300 User codes: Master, manager, supervisor & basic users
- Fingertip or Windows PC-programmable
- Real time clock enables up to 500 scheduled events and holiday schedules
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
- 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- 40,000 event audit trail log
- 500 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Program data transferred to lock via AL-PCI2 or AL-DTMIII
- 5AA battery-pak operated; 75,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Package Volume
728.8125
Reader Technology
Keypad Only
Color
Satin Chrome
Grade
ANSI/BHMA Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Programmer
Optional
Cylinder Type
Conventional
Package Qty
1
Package Height
4.875"
Door Thickness
1-5/8 to 1-7/8 Inch
Number of users
300
Package Width
11.5"
Keypad Type
Electronic
Color Code
626/US26D
Strike Type
Mortise
Lock Platform
Mortise Latch
Software
Optional
Base Material
Brass or Bronze
Power
Battery Pack
Package Length
13"
Finish
Satin Chrome
Finish Description
Satin Chrome
Keyblank Grouping
SCHL-C-6-1
Product Type
Access Control
Keyway
Schlage C
Keying Charges
CCAM
Hand
Left Hand
Backset
2-3/4 Inch
Handing
LH
Warranty
1 Year
Operating Temperature
-31 to 151°F
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Battery; Strike
Strike Size
4-7/8" x 1-1/4"
Standards
ANSI A115; BHMA Specification for Grade 1; UL Listed 10C Positive Pressure; FCC Certified; 3 Hr Fire Rated UL
Product Projection
3/4 (Latch Bolt); 1 (Deadbolt) Inch; Inch
Features
300 User Codes; Fingertip or Windows PC-Programmable; 40,000 Event Audit Trail Log; Long-Life Battery Pak for 80,000 Cycles; 1 3/8" Mortise Cylinder; 150 Scheduled Events; Quick Passage Mode; All Metal Button; Weather Resistant
Series
DL3 Series
Manufacturer Parent
Napco Security Technologies
Latchbolt Type
Stainless Steel Latch Bolt
Sub-Series
DL3500CRL-26D
Voltage
5 AA
Function
Key Override, Keyless Entry
Options
Straight Cam
Cylinder Included
Yes
Access Type
Keypad, Standalone
Alternate Part Number-1
122878
Finish code
US26D
Latch Bolt Type
Deadlatch
Lock Category
Mortise, Mortise Lock
Latch Bolt Throw
3/4in
Height
5
Length
13
Width
11.38
Product Overview
DL3500 Series Mortise LocksTrilogy Electronic Digital Mortise Locks
Electronic battery operated digital mortise lock. Holdsup to 300 codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail.
Features:- 300 User codes: Master, manager, supervisor & basic user
- Fingertip or Windows PC-programmable
- Real time clock enables up to 150 scheduled events and holiday schedules
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Choose either classroom or deadbolt versions and left or right hand-ing (If reverse hand is required, lock is field reversible.)
- 1 3/8" (3.5 cm) mortise cylinder supplied card enrollment mode al-lows many cards to be quickly added without PC –also– download-able from PC or prox enroller tool
- 40,000 event audit trail log
- 150 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Fits 1 5/8" to 1 7/8"
- 2 3/4" standard
- 1 1/4" x 4 7/8" strike included
- Specify RH or LH when ordering. Lock is reversible in the field.
- 5 AA alkaline batteries (included)
- All metal, 12 button. All functions programmed through keypad
- Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes
- Steelcase lock body meets BHMA specifications for Grade 1 locks UL Listend 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- Classroom function features stainless steel latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt function features stainless steel deadbolt with 1" (2.55cm) projection, latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt may be projected from key cylinder from outside door or turn-piece from inside door.
- 1 3/8" (3.5cm) mortise cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5 - 3.8cm) mortise cylinder.
- Classroom function supplied with straight cam. Deadbolt function supplied with cloverleaf cam. Cams for other manufacturer's cylinder are available.
- 26D - Satin Chrome
- 10B - Oil Rubbed Dark Bronze
