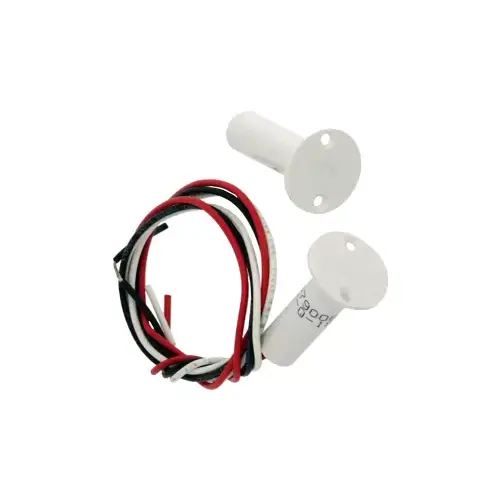

Schlage Electronics 679-05 Concealed Door Position Switch
Item #: 679-05 by Schlage Electronics
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Operating Voltages
30 VDC
Package Qty
1
Relay Action
Momentary (MOM)
Sensor Technology
Magnetic
Product Type
Access Control Part/Accessory
ADA Approved
False
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Alternate Part Number-1
154009
Voltage
30VDC
Application
Wood Doors and Frames
ADA Compliant
No
Standards
UL10C/CAN-ULC-S104
Function Family
Part/Component
Features
Used to Detect the Open or Closed Status of a Door Relative to Its Frame and then Relay This Status to a Control Panel; Concealed SPDT magnetic switches
Manufacturer Parent
Allegion
Sub-Series
679-05
Diameter
3/8"
Color
White
Part Type
Contacts
Mounting
Recessed
Door position switches are used to detect the open or closed status of an opening and then send this status to a control panel. They come in a variety of shapes and sizes and are designed for monitoring door positions, roof hatches, gates etc.
Specifications:- For wood doors and frames
- 0.3 Amps @ 30 VDC
- UL10C/CAN-ULC-S104
