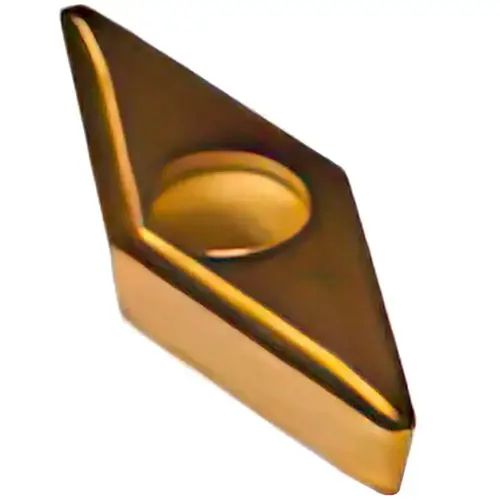

VNMG331-PEF DPC25UT Carbide Turning Insert - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dorian Tool 73310169273-XCP5 VNMG331-PEF DPC25UT Carbide Turning Insert - pack of 5

Item #: 73310169273-XCP5 by Dorian Tool

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

VNMG-PEF

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0156

Manufacturers Catalog Number

VNMG-331-PEF-DPC25UT

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6496

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1180

Multi-use Tool

No

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

N

Insert Shape Code

V

Chip Breaker

PEF

Insert Style

VNMG

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Maximum Depth of Cut (mm)

3.00

Manufacturer Grade

DPC25UT

ISO Size Code

160404

Grade Characteristics

Steel (P) - High Wear-Resistance to High Toughness

ANSI Size Code

331

ISO Insert Code

VNMG160404

Iso Code

VNMG-160404-PEF-DPC25UT

ANSI Insert Code

VNMG331

Product Overview
VNMG331-PEF DPC25UT Carbide Turning Insert Al2O3/TiCN/Al2O3/TiCN Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 35 degree Diamond
