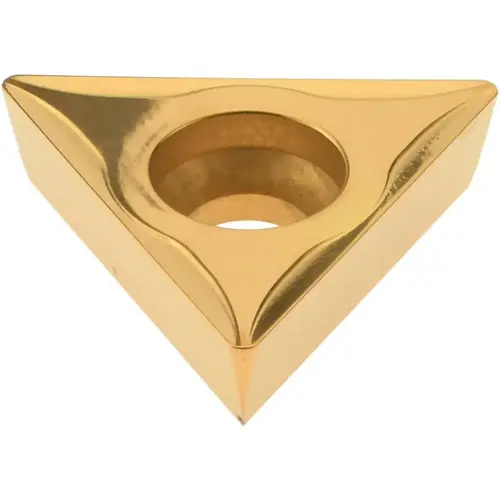

Turning Insert: TPGH432-UEN DPP30GT, Solid Carbide Titanium Nitride

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dorian Tool 73310171736 Turning Insert: TPGH432-UEN DPP30GT, Solid Carbide Titanium Nitride

Item #: 73310171736 by Dorian Tool

See reviewsSee reviews
See reviews summary
In Stock

$29.91

/each
SAVE UP TO 2.99
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Standards

ANSI

Included Angle

60

Insert Material

Carbide

Series

TPGH-UEN

Coating Process

PVD

Coating/Finish

Titanium Nitride

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

TPGH-432-UEN-DPP30GT

Material Grade

C6

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.8661

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.2400

Multi-use Tool

No

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Clearance Code

P

Rake Angle

7

Insert Shape Code

T

Chip Breaker

UEN

Insert Style

TPGH

Insert Size Code

432

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.3200

Relief Angle

11

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

8.13

Maximum Depth of Cut (mm)

6.10

Manufacturer Grade

DPP30GT

Iso Code

TPGH-220408-UEN-DPP30GT

Product Overview
Turning Insert: TPGH432-UEN DPP30GT, Solid Carbide TiN Coated, 0.8661" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle, Series TPGH-UEN
