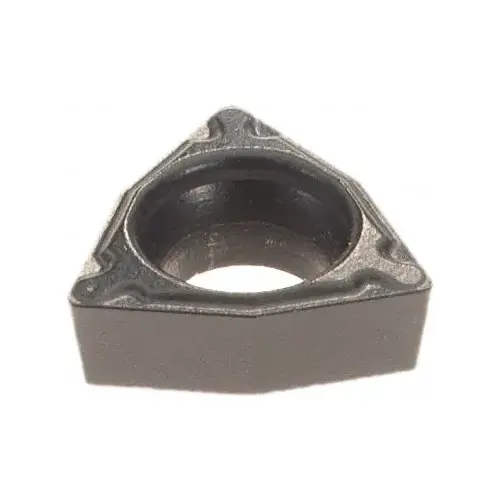

Dorian Tool 73310180251-XCP5 Turning Insert: WCMT1.210.2PEF DPC25UT, Solid Carbide - pack of 5

Item #: 73310180251-XCP5 by Dorian Tool

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
HURRY! Low in stock

$101.07

/package
SAVE UP TO 10.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

WCMT-PEF

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0040

Manufacturers Catalog Number

WCMT-1.210.2-PEF-DPC25UT

Material Grade

C5

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.1398

Insert Thickness (Decimal Inch)

0.0625

Insert Thickness (Inch)

1/16

Maximum Depth of Cut (Decimal Inch)

0.1180

Multi-use Tool

No

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.1563

Insert Shape

Trigon

Clearance Code

C

Rake Angle

7

Insert Shape Code

W

Chip Breaker

PEF

Insert Style

WCMT

Insert Size Code

1.210.2

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.0840

Relief Angle

7

Inscribed Circle (Inch)

5/32

Hole Diameter (Mm) ( - 0 Decimals)

2.13

Maximum Depth of Cut (mm)

3.00

Manufacturer Grade

DPC25UT

Iso Code

WCMT-020101-PEF-DPC25UT

Product Overview
Turning Insert: WCMT1.210.2PEF DPC25UT, Solid Carbide Al2O3, TiCN, Al2O3 & TiCN Coated, 0.1398" Long, 5/32" Inscribed Circle, 0.004" Corner Radius, 80 degree Trigon, Series WCMT-PEF
