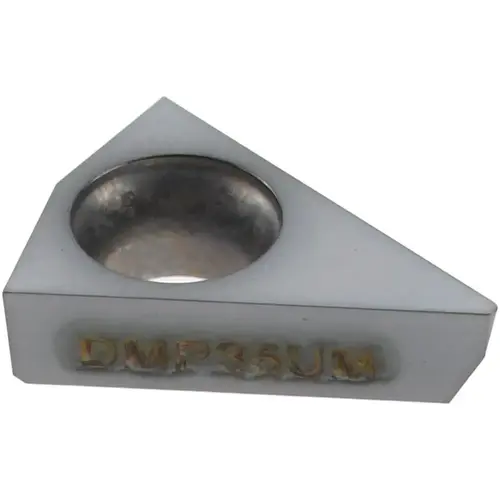

Dorian Tool 73310195493 Milling Insert: Solid Carbide

Item #: 73310195493 by Dorian Tool

Brand: Dorian Tool

See reviewsSee reviews
See reviews summary
In Stock

$33.65

/each
SAVE UP TO 3.36
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 29 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Iso Code

TDEX-090202-XDEN-DMP35UM

Corner Radius (mm)

0.20

Inscribed Circle (mm)

9.50

Thickness Range (Decimal Inch)

0.0000 to 0.1000

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Manufacturer Grade

DMP35UM

Hole Diameter (Mm) ( - 0 Decimals)

0.11

Included Angle Degree

45

Relief Angle

11.00

Hole Diameter (Decimal Inch)

0.1118

Insert Size Code

090202

Insert Style

TDEX

Chip Breaker

DMP

Insert Shape

Triangle

Inscribed Circle (Decimal Inch)

0.3740

Insert Hand

Neutral

Rake

Positive

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

6.50

Width (Decimal Inch - 4 Decimals)

0.2559

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Inch)

3/32

Thickness (Decimal Inch - 4 Decimals)

0.0940

Primary Workpiece Material Code

S

Primary Workpiece Material

Superalloys & Titanium

Material Grade

S35

Manufacturers Catalog Number

TDEX-090202-XDEN-DMP35UM

Length (Decimal Inch - 4 Decimals)

0.2559

Corner Radius (Decimal Inch)

0.0080

Coating Process

PVD

Series

TDEX

Insert Material

Solid Carbide

Thickness (mm)

2.39

ANSI Code

TDEX-090202-XDEN-DMP35UM

Length (mm)

6.50

Material Application

High-Temperature Alloy

Product Overview
Milling Insert: Solid Carbide Coated, 0.094" Thick, 6.5 mm Wide
