DORMAKABA Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

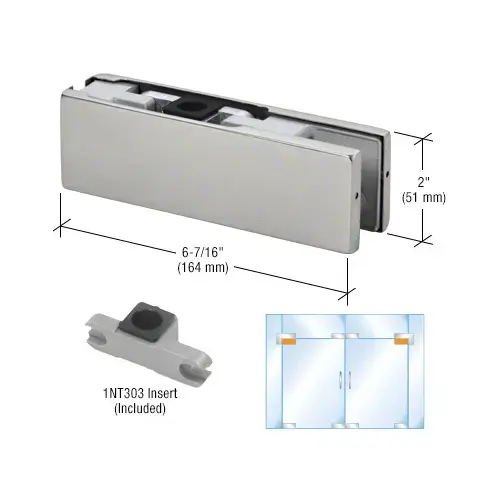

DORMA PT2034BS KABA Brushed Stainless Top Door Patch Fitting with Pivot Insert For 3/4" Glass
Item #: PT2034BS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- 2-3/4" (70 mm) Pivot Setback
- 304 Alloy Stainless Steel Covers
- For 3/4" (19 mm) Glass
Glass Thickness
3/4" (19 mm)
Finish
Brushed Stainless Steel
Pivot Backset (Inches)
2-3/4
Glazing Thickness
3/4
Finish/Color
Brushed Stainless Steel
Type
Top
Series
DORMAKABA®
Insert Type
1NT303
Pivot Setback
2-3/4
With Insert
Yes
Product Overview
DORMAKABA Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
