The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning
These fittings are not for use with laminated glass.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

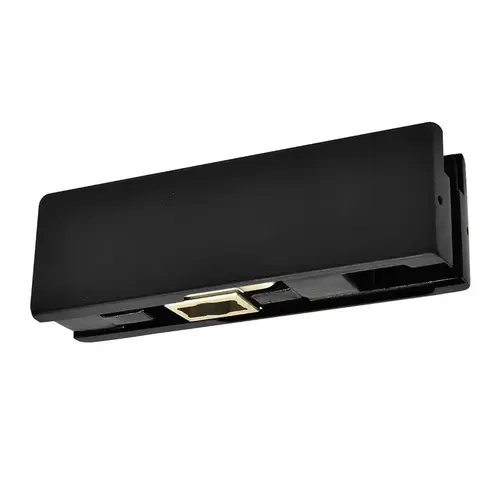

DORMA PT1034MBL KABA Matte Black Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass
Item #: PT1034MBL by CR Laurence
See reviewsSee reviews
HURRY! Low in stock
$149.39
/eachSAVE UP TO 14.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 2-3/4" (70 mm) Pivot Setback
- For 3/4" (19 mm) Glass
- Use Monolithic Tempered Glass
Finish
Matte Black
Glazing Thickness
3/4
Finish/Color
Matte Black
Pivot Backset (Inches)
2-3/4
Type
Bottom
Works with
1NT301 Insert
Series
DORMAKABA®
Pivot Setback
2-3/4
With Insert
Yes
Product Overview
DORMAKABA Bottom Patch Fittings are used with our bottom door pivots or floor closers. It fits in the lower corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed or polished stainless steel finishes.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning
These fittings are not for use with laminated glass.
