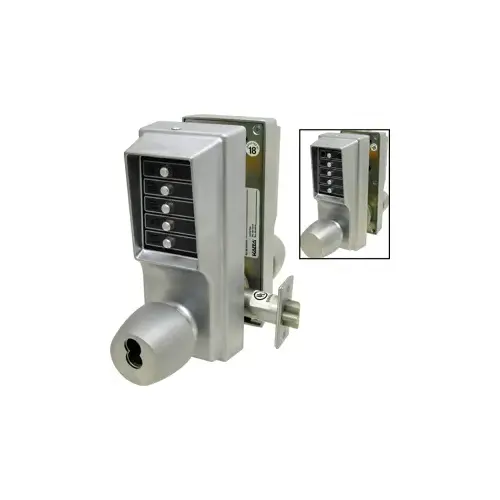

Dormakaba EE21B/11-26D-41 Double 5 Button Combination, Back to Back Knob Locks, Best 6/7 SFIC Prep Outside Only, Less Core, 2-3/4" Backset, 1/2" Throw, Satin Chrome

Item #: EE21B/11-26D-41 by Dormakaba InSync

See reviewsSee reviews
HURRY! Low in stock

$1,257.54

/each
SAVE UP TO 125.75

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

156933

Handing

Field Reversible, Left Hand

Function

Entry

Door Thickness

1-3/4 - 2-1/4 inch

Access Type

Mechanical, Standalone

Lock Category

Cylindrical Lock

Knob/Lever Style

Knob

Product Overview

Simplex EE1000 - Entry and Egress

The Simplex EE1000 Series provides interior and exterior access by combination. This mechanical lock, with knob option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

FEATURES

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed for left-hand doors; field reversible
  • Key Override (Optional): Small format interchangeable cores, large format removable coresv
  • Operation Modes:
    • Pushbutton entry
    • Pushbutton egress
  • Economical: A cost effective access control solution



    • SPECIFICATIONS

  • Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Door Handing: Factory-handed for left-hand doors; easily field reversible
  • Backset: 2-3/4" (70 mm)
  • Latch: 1/2" (13 mm) throw latch, 3/4" (19 mm) throw latch (optional)
  • Strike: Standard strike plate; ASA strike plate
  • Door Preparation: ASA 161-door preparation with additional through bore holes
  • Door Thickness: 1-3/4" (44 mm) to 2-1/4" (57 mm); modified lock for more than 2" (51) thick door (up to 2-1/4") available (specify when ordering)
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 10.25 lbs. (4.6 kg)

    • FINISHES

  • Standard Finishes:
    • Antique Brass 05 (609)
    • Satin Chrome 26D (626)
  • Optional Finishes:
    • Bright Chrome 026 (625)
    • Bright Brass 03 (605)
