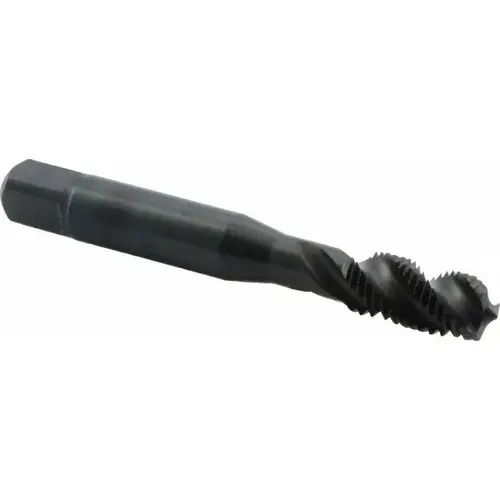

Spiral Flute Tap: 3/8-20, BSF, 3 Flute, Modified Bottoming Chamfer, High-Speed Steel, Oxide Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dormer Pramet 5976616Click To Copy Spiral Flute Tap: 3/8-20, BSF, 3 Flute, Modified Bottoming Chamfer, High-Speed Steel, Oxide Finish

Item #: 5976616 by Dormer Pramet

See reviewsSee reviews
See reviews summary
In Stock

$93.58

/each
SAVE UP TO 9.36

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel

Application

Blind Hole Threading

Flute Style

Fast

Material Application

Alloy Steel

Overall Length (mm)

80.00

Helix Angle

40

Number of Flutes

3

Thread Direction

Right Hand

Threads Per Inch

20

Series

E538

Thread Length (mm)

18.00

Thread Standard

BSF

Chamfer

Modified Bottoming

Coating/Finish

Oxide

Coolant Through

No

Material Grade

M2

Overall Length (Decimal Inch)

3.1520

Oversize

No

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.3940

Shank Diameter (mm)

10.00

Square Size (mm)

8.00

Tapping Depth (mm)

34.00

Thread Length (Decimal Inch)

0.7092

Thread Size (Inch)

3/8-20

UNSPSC Code

23241600

Vendor Drop Ship

N

Flute Direction

Right Hand

Proprietary Coating/Finish

Oxide

Tapping Depth (Decimal Inch)

1.3396

Product Overview
Spiral Flute Tap: 3/8-20, BSF, 3 Flute, Modified Bottoming Chamfer, High-Speed Steel, Oxide Finish 18.00 mm Thread Length, 80.00 mm OAL, Right Hand Flute, Right Hand Thread, Series E538
