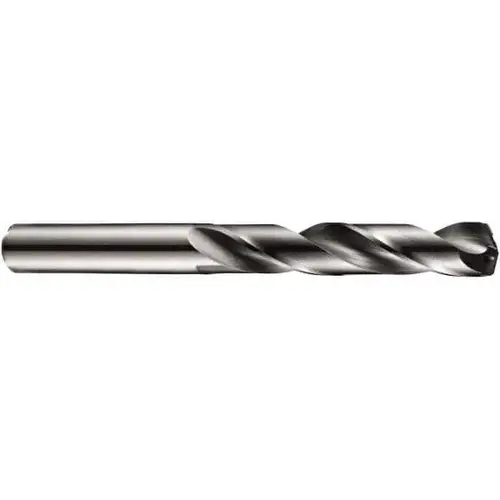

Dormer Pramet 5978935 Jobber Drill: 4.60 mm Dia, 140 deg Point, Solid Carbide TiAlN

Item #: 5978935 by Dormer Pramet

See reviewsSee reviews
See reviews summary

$168.47

/each
SAVE UP TO 16.85
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight

Overall Length (mm)

74.00

Number of Flutes

2

Cutting Direction

Right Hand

Point Type

4 Facet

Drill Bit Material

Solid Carbide

Coating/Finish

TiAlN

Coolant Through

Yes

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.1811

Drill Bit Size (mm)

4.60

Drill Bit Size Range (Decimal Inch)

0.1500 - 0.2000

Drill Point Angle

140 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

1.4184

Flute Length (mm)

36.00

Overall Length (Decimal Inch)

2.9156

Primary Workpiece Material

Steel

Shank Diameter (Decimal Inch)

0.2364

Shank Diameter (mm)

6

Shank Length (Decimal Inch)

1.4184

Shank Length (mm)

36

UNSPSC Code

23241634

Vendor Drop Ship

Y

Drill Bit Diameter Tolerance

+0.004 to +0.016 mm

Drill Bit Size Range (mm)

4.00 - 5.00

Specification Designation

DIN

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Drill: 4.60 mm Dia, 140 deg Point, Solid Carbide TiAlN Coated, 74.00 mm OAL, Right Hand, Straight-Cylindrical Shank,
