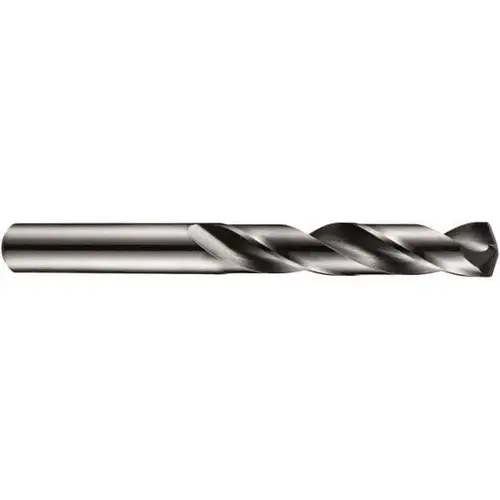

Jobber Drill: 4.80 mm Dia, 140 deg Point, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Dormer Pramet 5980182 Jobber Drill: 4.80 mm Dia, 140 deg Point, Solid Carbide TiAlN

Item #: 5980182 by Dormer Pramet

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$109.14

/each
SAVE UP TO 10.91
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight

Overall Length (mm)

82.00

Number of Flutes

2

Standards

DIN 6537 L

Cutting Direction

Right Hand

Series

R454

Point Type

4 Facet

Drill Bit Material

Solid Carbide

Tool Application

Self-Centering

Coating/Finish

TiAlN

Coolant Through

No

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.1890

Drill Bit Size (mm)

4.80

Drill Bit Size Range (Decimal Inch)

0.1500 - 0.2000

Drill Point Angle

140 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

1.7336

Flute Length (mm)

44.00

Overall Length (Decimal Inch)

3.2308

Primary Workpiece Material

Steel

Primary Workpiece Material Code

H

Shank Diameter (Decimal Inch)

0.2364

Shank Diameter (mm)

6

Shank Length (Decimal Inch)

1.4184

Shank Length (mm)

36

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.004 to +0.016 mm

Drill Bit Size Range (mm)

4.00 - 5.00

Specification Designation

DIN

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Drill: 4.80 mm Dia, 140 deg Point, Solid Carbide TiAlN Coated, 82.00 mm OAL, Right Hand, Straight-Cylindrical Shank, Series R454
