Features
- Constructed from solid brass with an oil-rubbed bronze finish, providing a traditional aesthetic for residential door hardware.
- Measures 3-3/4" in height and 9-1/4" in width, with a 5/8" radius corner style for standard door installations.
- Designed for door thicknesses of 1-3/8" and 1-3/4", suitable for various residential interior door applications.
- Features a double-action design that swings in both directions and includes a hold-open function at approximately 90 degrees.
- Supports a maximum load capacity of 90 lbs, utilizing a plain bearing mechanism for consistent operation.
- Surface mount pivot set hinge with universal handing, compatible with wood screw installation for residential doors.
- Includes cover plates and trim, with specific dimensions of 9-3/4" x 2-5/8" for the cover plate and 1" x 3-1/4" for the back plate.
Color
Oil Rubbed Bronze
Size
3-3/4" Height X 9-1/4" Width
Finish
US10B
Material
Solid Brass
Screw Type
Wood
Theme
Traditional
Quantity
1
Removable Pin
Without Removable Pin
Door Thickness
1-3/8 & 1-3/4
Hinge Strength
Residential
Mounting Type
Surface Mount
Hinge Height
3.75
Hinge Width
9.25
Length
9.25
Handing
Universal Handing
Function
Pivot Set
Hinge Type
Plain Bearing, Spring Hinge
Maximum Load
90 LBS
Height
3-3/4
Width
9-1/4
Pack Size
1
Finish Description
Oil Rubbed Dark Bronze
Finish Family
Dark Bronze
Product Material
Solid Brass
Function Family
Hinge/Pivot
Features
The Double Action Spring Hinge is a Floor Mounted Self Closing Hinge with Solid Brass Cover Plates and Trim, It Swings in Both Directions and has a Hold Open Feature at Approximately 90 Degrees
Product Type
Hinge/Pivot
Series
DASH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_1
Color Code
613/US10B
Package Height
3.5"
Package Length
11"
Package Width
4.5"
Item Weight
4.2 lbs
Dimension
9-3/4" x 2-5/8" Cover Plate; 1" x 3-1/4" Back Plate; 1-1/16" x 9-1/4" Pivot
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Hazardous Material
No
Finish code
US10B
No of inners
1
Corner Style
5/8" Radius Corners
Bearing Type
Plain Bearing
Substrate Type
Brass
Non-Removable Pin
No
Map Policy
Yes
Product Overview

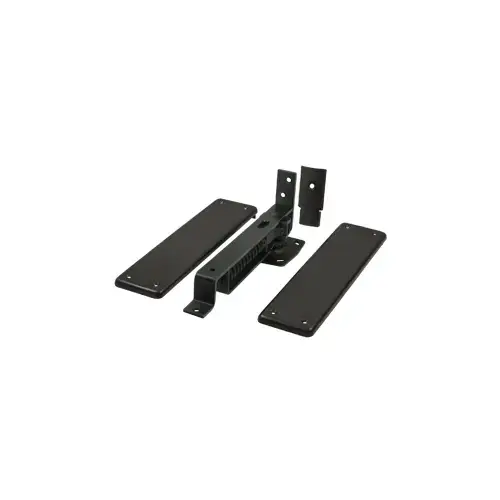

The Spring Hinge, Double Action with Solid Brass Cover Plates in Oil-rubbed Bronze is a floor-mounted, self-closing hinge designed for residential door applications. Constructed from solid brass, this hinge features cover plates and trim in an oil-rubbed bronze finish. It is a double-action hinge that swings in both directions and includes a hold-open feature at approximately 90 degrees. The hinge has a height of 3-3/4" and a width of 9-1/4", with a 5/8" radius corner style. It is compatible with door thicknesses of 1-3/8" and 1-3/4". This pivot set hinge utilizes a plain bearing mechanism and is designed for universal handing. It supports a maximum load of 90 lbs. The hinge includes wood screws for surface mounting. Additional dimensions include a 9-3/4" x 2-5/8" cover plate, a 1" x 3-1/4" back plate, and a 1-1/16" x 9-1/4" pivot.
