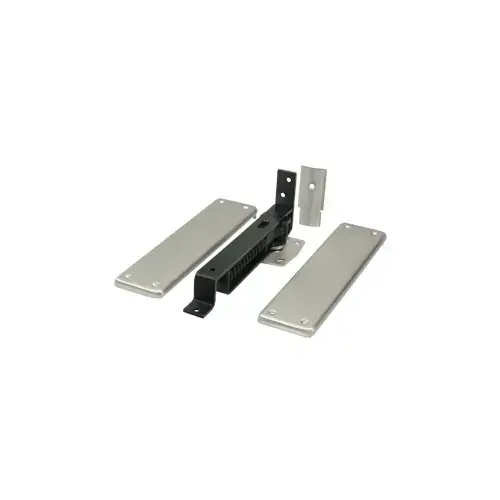

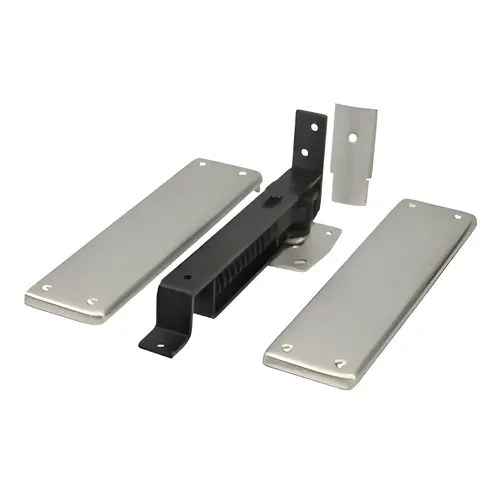

Deltana DASH95U15 Spring Hinge, Double Action With Solid Brass Cover Plates, 3-3/4" Height, 9-1/4" Width, Solid Brass Material, Satin Nickel Finish
Item #: DASH95U15 by Deltana
Brand: Deltana
UPC #: 760923226801
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with a satin nickel finish, providing a traditional look for residential door hardware applications.
- Measures 3-3/4" in height and 9-1/4" in width, with a 5/8" radius corner style for standard door installations.
- Compatible with door thicknesses of 1-3/8" and 1-3/4", featuring universal handing for flexible door mounting.
- Double action design allows the door to swing in both directions, with a hold-open feature at approximately 90 degrees.
- Supports a maximum load capacity of 90 lbs, suitable for residential door pivot set and spring hinge applications.
- Surface mount installation type with plain bearing mechanism for smooth operation in residential door environments.
- Includes solid brass cover plates and trim to conceal the hinge mechanism, ensuring a clean appearance after installation.
Color
Satin Nickel
Size
3-3/4" Height X 9-1/4" Width
Finish
US15
Material
Solid Brass
Screw Type
Wood
Theme
Traditional
Quantity
1
Removable Pin
Without Removable Pin
Door Thickness
1-3/8 & 1-3/4
Hinge Strength
Residential
Mounting Type
Surface Mount
Hinge Height
3.75
Hinge Width
9.25
Length
9.25
Handing
Universal Handing
Function
Pivot Set
Hinge Type
Plain Bearing, Spring Hinge
Maximum Load
90 LBS
Height
3-3/4
Width
9-1/4
Pack Size
1
Finish Description
Satin Nickel
Finish Family
Satin Nickel
Product Material
Solid Brass
Function Family
Hinge/Pivot
Features
The Double Action Spring Hinge is a Floor Mounted Self Closing Hinge with Solid Brass Cover Plates and Trim, It Swings in Both Directions and has a Hold Open Feature at Approximately 90 Degrees
Product Type
Hinge/Pivot
Series
DASH Series Hinges
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_1
Color Code
619/US15
Package Height
3.5"
Package Length
11"
Package Width
4.5"
Item Weight
4.2 lbs
Dimension
9-3/4" x 2-5/8" Cover Plate; 1" x 3-1/4" Back Plate; 1-1/16" x 9-1/4" Pivot
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Hazardous Material
No
Finish code
US15
No of inners
1
Corner Style
5/8" Radius Corners
Bearing Type
Plain Bearing
Substrate Type
Brass
Non-Removable Pin
No
Map Policy
Yes
Product Overview
The Spring Hinge, Double Action with Solid Brass Cover Plates in Brushed Nickel is a floor-mounted, self-closing hinge designed for residential door applications. Constructed from solid brass with a satin nickel finish, this hinge features solid brass cover plates and trim for a traditional aesthetic. The hinge is engineered to swing in both directions and includes a hold-open feature at approximately 90 degrees. It is compatible with door thicknesses of 1-3/8" and 1-3/4". The hinge measures 3-3/4" in height and 9-1/4" in width, with a 5/8" radius corner style. It functions as a pivot set with universal handing, suitable for various door configurations. The assembly includes a plain bearing mechanism and is designed for surface mounting. The hinge supports a maximum load of 90 lbs. The package includes all necessary parts, including plates and covers to conceal the mechanism. This hinge is designed for residential use and provides consistent operation.
