Features
- Constructed from solid brass with a brushed chrome finish, providing a functional component for residential door hardware.
- Measures 3-3/4" in height and 9-1/4" in width, with 5/8" radius corners for standard residential door installations.
- Designed for door thicknesses of 1-3/8" and 1-3/4", featuring universal handing for flexible application.
- Double-action mechanism allows the door to swing in both directions and includes a hold-open feature at 90 degrees.
- Supports a maximum load capacity of 90 lbs, suitable for residential door applications.
- Floor-mounted, surface-mount hinge type with plain bearing design for consistent operation.
- Includes solid brass cover plates, trim, and wood screws for a complete installation setup.
Size
3-3/4" Height X 9-1/4" Width
Finish
US26D
Material
Solid Brass
Screw Type
Wood
Theme
Traditional
Quantity
1
Removable Pin
Without Removable Pin
Door Thickness
1-3/8 & 1-3/4
Hinge Strength
Residential
Mounting Type
Surface Mount
Hinge Height
3.75
Hinge Width
9.25
Length
9.25
Handing
Universal Handing
Function
Floor Hinge
Hinge Type
Plain Bearing, Spring Hinge
Maximum Load
90 LBS
Height
3-3/4
Width
9-1/4
Pack Size
1
Package Height
3.5"
Package Length
11"
Package Width
4.5"
Item Weight
4.2 lbs
Dimension
9-3/4" x 2-5/8" Cover Plate; 1" x 3-1/4" Back Plate; 1-1/16" x 9-1/4" Pivot
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Hazardous Material
No
Finish code
US26D
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
5/8" Radius Corners
Bearing Type
Plain Bearing
Product Material
Brass
Substrate Type
Brass
Non-Removable Pin
No
Map Policy
Yes
Product Overview

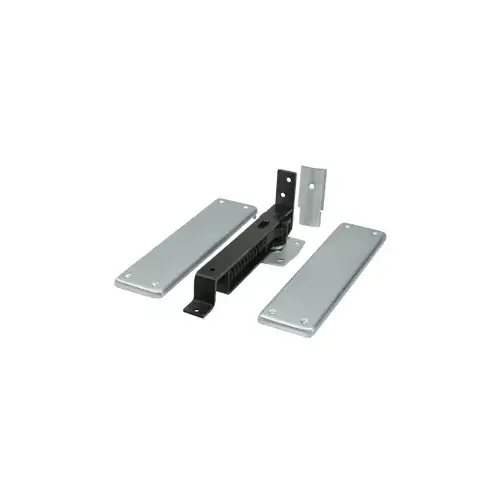

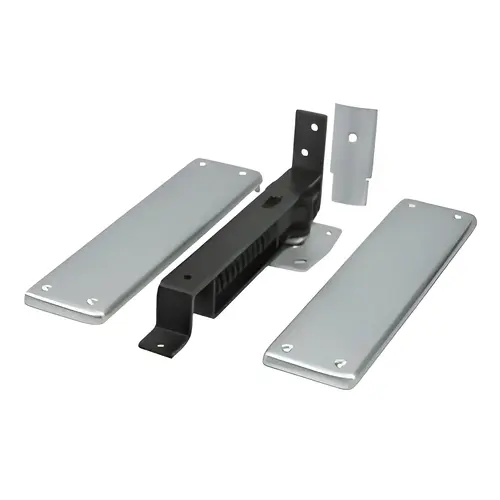

The Spring Hinge, Double Action with Solid Brass Cover Plates in Brushed Chrome is a floor-mounted, self-closing hinge designed for residential door applications. Constructed from solid brass with a brushed chrome finish, this hinge features a double-action mechanism that allows the door to swing in both directions. It includes a hold-open feature at approximately 90 degrees. The hinge is designed for doors with a thickness of 1-3/8" and 1-3/4". It features a 3-3/4" height and a 9-1/4" width, with 5/8" radius corners. The hinge is a plain bearing, spring-loaded type with universal handing, suitable for various residential door setups. The assembly includes solid brass cover plates and trim to conceal the mechanism. The hinge supports a maximum load of 90 lbs and has an item weight of 4.2 lbs. The set includes all necessary parts, including plates and covers. The cover plate dimensions are 9-3/4" x 2-5/8", the back plate dimensions are 1" x 3-1/4", and the pivot dimensions are 1-1/16" x 9-1/4". It uses wood screws for surface mounting.
