Features
- Constructed from solid brass with an antique brass finish, providing a traditional look for residential door hardware applications.
- Measures 3-3/4" in height and 9-1/4" in width, featuring 5/8" radius corners for standard residential door installations.
- Compatible with door thicknesses of 1-3/8" and 1-3/4", designed for surface mount applications on residential doors.
- Double action design allows the door to swing in both directions and includes a hold open feature at a 90 degree angle.
- Supports a maximum load capacity of 90 lbs, utilizing a plain bearing mechanism for consistent operation in residential settings.
- Functions as a floor hinge with universal handing, suitable for various door configurations in residential environments.
- Includes solid brass cover plates and trim to conceal the hinge mechanism, with all necessary parts for installation.
Size
3-3/4" Height X 9-1/4" Width
Finish
US5
Material
Solid Brass
Screw Type
Wood
Theme
Traditional
Quantity
1
Removable Pin
Without Removable Pin
Door Thickness
1-3/8 & 1-3/4
Hinge Strength
Residential
Mounting Type
Surface Mount
Hinge Height
3.75
Hinge Width
9.25
Length
9.25
Handing
Universal Handing
Function
Floor Hinge
Hinge Type
Plain Bearing, Spring Hinge
Maximum Load
90 LBS
Height
3-3/4
Width
9-1/4
Pack Size
1
Package Height
3.5"
Package Length
11"
Package Width
4.5"
Item Weight
4.2 lbs
Dimension
9-3/4" x 2-5/8" Cover Plate; 1" x 3-1/4" Back Plate; 1-1/16" x 9-1/4" Pivot
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Hazardous Material
No
Finish code
US5
Series
Steel, Stainless Steel, and Spring Hinges
No of inners
1
Corner Style
5/8" Radius Corners
Bearing Type
Plain Bearing
Product Material
Brass
Substrate Type
Brass
Non-Removable Pin
No
Map Policy
Yes
Product Overview

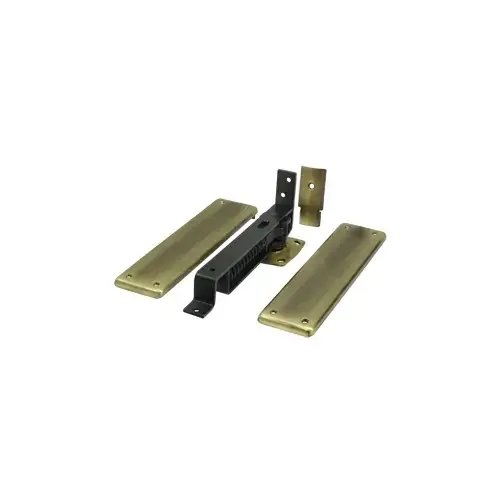

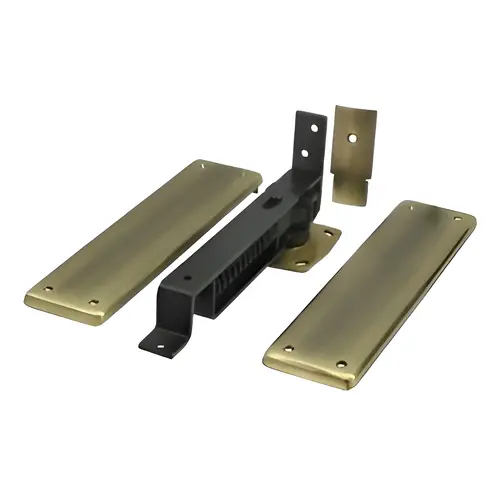

The Spring Hinge, Double Action with Solid Brass Cover Plates in Antique Brass is a floor-mounted hinge designed for residential door applications. Constructed from solid brass, this hinge features solid brass cover plates and trim for a traditional aesthetic. It is a double action hinge that swings in both directions and includes a hold open feature at approximately 90 degrees. The hinge is designed for doors with a thickness of 1-3/8" and 1-3/4". It features a height of 3-3/4" and a width of 9-1/4", with 5/8" radius corners. This surface mount hinge is rated for residential use with a maximum load capacity of 90 lbs. It utilizes a plain bearing mechanism and is designed with universal handing for flexible installation. The hinge includes cover plates that conceal the mounting hardware. The dimensions of the components are 9-3/4" x 2-5/8" for the cover plate, 1" x 3-1/4" for the back plate, and 1-1/16" x 9-1/4" for the pivot. This hinge is suitable for various residential door setups requiring self-closing functionality.
