Drill-Thru Shelf Support with Tensioner for 3/8" Cable System

Roll over image to zoom in

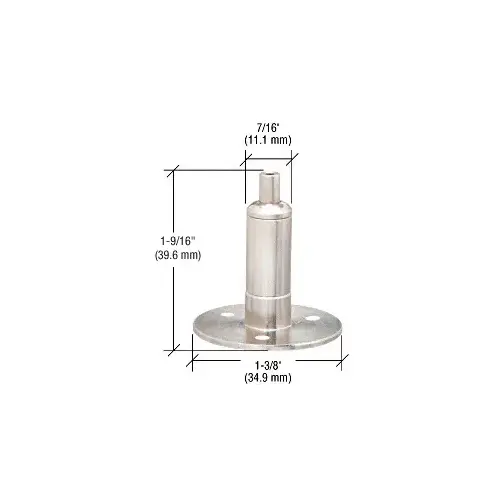

CRL Y03CR Drill-Thru Shelf Support with Tensioner for 3/8" Cable System

Item #: Y03CR by CR Laurence

See reviews See reviews

In Stock $25.99 /each

SAVE UP TO 2.60

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Ideal for Glass or Wood Shelves
  • Drill-Thru Support Permits Glass Shelves to Rest on Large Diameter Plate

Color

Nickel Plated

Finish

Brushed Stainless Steel

Material

Stainless Steel

Glazing Thickness

3/8

Finish/Color

Brushed Stainless Steel

CRL Drill-Thru Shelf Support with Tensioner for 3/8" Cable System is used in single shelf installations. It is designed to be used with CRL cable system for 3/8” (10mm) glass. The Support requires a 1/2" (12.7 mm) drilled hole in the shelf, and is easily adjusted either up and down on the Cable to obtain the desired height. CRL Drill-Thru Shelf Support with Tensioner for 3/8" Cable System Support can also be used with wood shelves using the three holes in the support disk to secure the shelf with wood screws (not included). The diameter of the Shelf Support Plate is 1-3/8" (35 mm). Each Drill-Thru Shelf Support has a maximum weight capacity of 20 lbs. (9 kg). The package contains one Support Disk and one Cable Tensioner. DS 07/25/2016

From Manufacturer

The CRL Drill-Thru Shelf Support with Tensioner is designed to be used with the CRL Cable System for 3/8" (10 mm) Glass, and is used in single shelf installations. The Support requires a 1/2" (12.7 mm) drilled hole in the shelf, and is easily adjusted either up and down on the Cable to obtain the desired height. This Support can also be used with wood shelves using the three holes in the support disk to secure the shelf with wood screws (not included). The diameter of the Shelf Support Plate is 1-3/8" (35 mm). Each Drill-Thru Shelf Support has a maximum weight capacity of 20 lbs. (9 kg). The package contains one Support Disk and one Cable Tensioner.
