CRL CRL8010DP Dual-Purpose Floor or Threshold Mounted Pivot for Use with 1" Deep Bottom Door Rail Applications
Item #: CRL8010DP by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For use with both end-load and side-load arms
- Dual-purpose pivot mounts directly to floor or threshold
- 3/16" (5 mm) height adjustment
- For use with 1" (25 mm) deep bottom door rail applications
- Can be used with the base plate for floor mounting or attached directly to the threshold
Shipping Weight
1 lb (454g)
Mounting Type
Floor or Threshold
Type
End-Load Arm or Side-Load Arm
Handing
Non Handed
Brand
Jackson
Door Weight
200
Recommended Door Type
Aluminum Store Front
Bottom Door Clearance Adjustment (Inches)
3/16
Pivot Bottom
Yes
Bottom Door Rail Depth (Inches)
1
Bottom Door Rail Depth
1
Bottom Door Clearance Adjustment
3/16
Product Overview

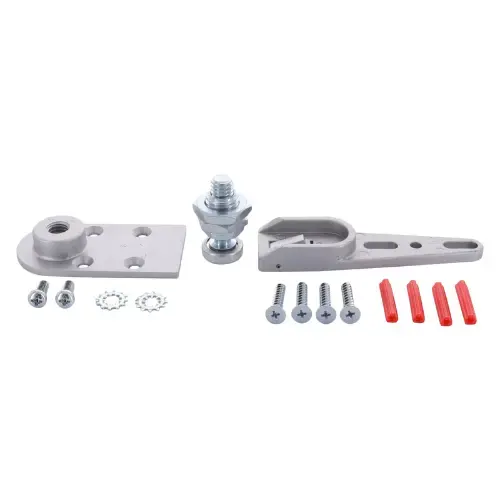

This CRL Adjustable Dual-Purpose Bottom Pivot Set is for use with 1" (25 mm) deep bottom door rail applications, and is the standard Bottom Pivot Set supplied with our 'S' Type and 'A' Type Door Closer packages. It can be used with the base plate for floor mounting or attached directly to the threshold. A 3/16" (5 mm) height adjustment is possible with the door on or off the pivot. This Pivot is suitable for either end-load or side-load center-hung applications. Maximum weight capacity is 200 lbs. (90.7 kg)
