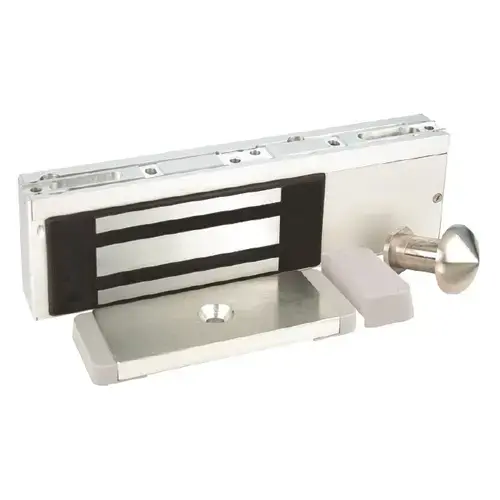

Securitron IMXDA-CH Dual Voltage Chicago Integrated Motion Exit Delay System Satin Stainless Steel
Item #: IMXDA-CH by SECURITRON
Brand: Securitron
See reviewsSee reviews
Model: iMXDaCH - Chicago Required Timings
iEXDa - External Initiation
iMXDa - Integrated Initiation and Adjustable Timing
iMXDa-CA - Integrated Motion Exit Delay System, California Code Compliant
iMXDaCH - Chicago Required Timings
iMXDaH - HUGS Infant Protection Timings
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Color
Satin Stainless Steel
Color Code
630/US32D
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Product Type
Magnetic Locks
Voltage
12/24VDC
Model
iMXDaCH - Chicago Required Timings
Electronic
Yes
Holding Force
1200
Product Depth
5/16"
Product Height
3-5/8"
Product Width
2"
Product Overview
Integrated Motion Exit Delay System, Chicago, Satin Stainless Steel
Prevent losses at emergency exits with IEXDA and IMXDA. An attempted exit initiates an alarm and a brief delay before the lock releases, giving personnel time to respond before an exit occurs. Protect memory care wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Used on out- swing doors, installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware. Fully integrated delay and detection features for fast installation of delayed egress system . Easily adjustable door movement detection from 1/8" [3.2mm] to 1" [25mm]. Bracket mounted for ease of installation. Automatic dual-voltage, no field adjustment required. Permits free egress in emergency situations. Efficient, low power usage. Compact 12-1/2" length can be used with most door closers. Easily visible LEDs indicate status on secure side of door. Advanced intelligent microprocessors provide alarm options and trainable door movement detection to minimize false alarms. Nuisance alarm times - 0 to 3 seconds. Irrevocable delay times - 15 or 30 seconds - user selectable. External bypass delay times - 0, 5,10, or 15 seconds. Post alarm reminder - user selectable. Bypass expiration alarm - user selectable. Manual relock or delayed automatic relock (BOCA) - user selectable. External alarm relay isolated dry contact (1A at 24 VDC). External reset. Rust resistant - all ferrous metal surfaces plated for durability.
Magnalocks provide quality solutions for high traffic and high security applications.
