Features
Product Type
Misc.
Electronic
Yes
Product Finish
Brushed Stainless Steel (US32D)
Duty Level
Heavy Duty
Anti-Tamper Switch
No
Mortise Cylinder
No
Two Gang Plate
No
Bi-Color LED - Red/Green, 12/24 VDC
No
Product Overview

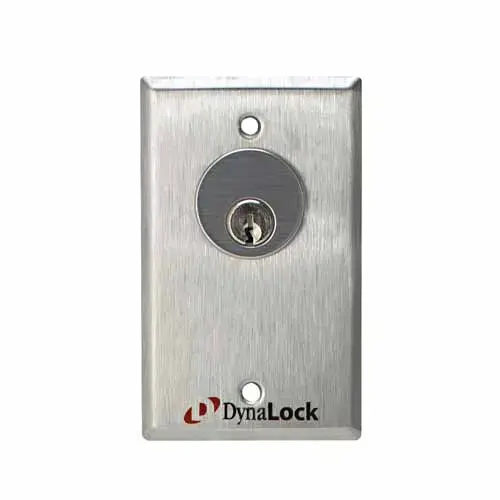

DynaLock 7000 Series Keyswitches
Model 7002 Momentary, (1) SPDT
Keyswitchesmay be used to control electric locks, shunt or activate security
panels, consoles or any similar requirements. The assembly is supplied with
face plate, bracketry, cylinder locknut and one or two switches depending on
model ordered. The user typically supplies the mortise cylinder and cam when
master keying a system.
Switch contacts rated 6 Amps @ 125VAC and are available momentary or
maintained, SPDT or DPDT. Switch assembly requires 1-1/2" depth clearance
and is shipped on single, double or narrow gang plates.
Standard Finish: US32D
Cylinder Requirements: 1-1/8" or 1-1/4" Mortise Cylinder with bat" type cam.
Standard Features
Compatibility: Keyswitch readily accepts any standard 1-1/8" or 1-1/4" long mortise key cylinder fitted with a specified bat" type cam.
Multiple Switch Functions: Switches are available in momentary or maintained functions, with single or double pole contacts and may be ordered in varying combinations.
Maintained Contact: Rotating the key to its stop and back to vertical changes the state of the switch contact. To return the contact to its original state this procedure must be repeated. Key is removable in the vertical position.
Momentary Contact: Rotating the key to its stop changes the state of the contact while the key is held in that position. Rotating the key back to vertical returns the switch contact to its original state. Key is removable in the vertical position.
Tamper Resistant: All visible screws are spanner head.
Heavy-Duty Switching: Switch capacity 6 amps at 125 volts.
Factory Prewired Switches: Are shipped with 6" long factory wired color-coded 18 ga. leads.
Standard Finish: US32D Brushed Stainless Steel
