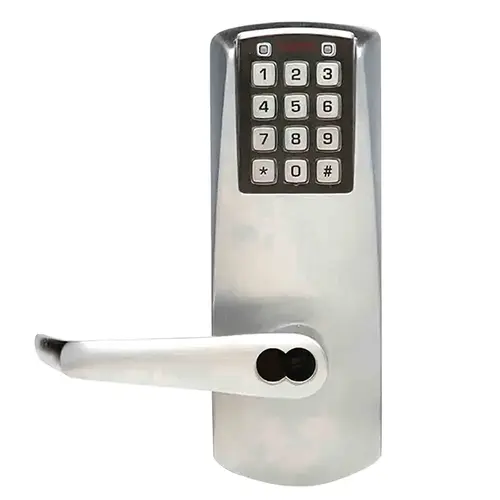

E-Plex 201U Series Electronic Pushbutton Exit Trim Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kaba Access E201VBLL-626-41 E-Plex 201U Series Electronic Pushbutton Exit Trim Satin Chrome

Item #: E201VBLL-626-41 by Ilco

Brand: Kaba Access

See reviewsSee reviews
See reviews summary

$805.94

887.00 /each
SAVE UP TO 80.59
Buying in bulk
Special Order*Usually ships in 1-2 weeks

Finish: Satin Chrome

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
  • Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
  • Backset: Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset Mortise: 2¾" (70 mm) backset Exit Trim Model: Varies by Exit Device
  • Latches: Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional) Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
  • Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
  • Minimum Stile Required: 5" (127 mm)
  • Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
  • Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included

Color

Satin Chrome

Cylinder Type

SFIC Prep Less Core

Package Qty

1

Color Code

626/US26D

Lock Platform

Exit Device Trim

Base Material

Brass or Bronze

Package Height

5.75

Package Length

12

Package Width

10.25

Finish

626/US26D

Stile Type

Wide Stile

Electronic

Yes

Door Handing

Field Reversible

Substrate Type

Brass or Bronze

Locking Device

V - Exit device trim - Select models for Von Duprin (function 1 or 2 only)

Stile Width

5"

Key Override

B - BEST and equivalents (6 or 7-pin length), cylinder not included, lever preps not interchangeable

Lock Type

Exit Device Trim

Cylinder and Keyways

Schlage C keyway standard for XS key override option

Product Overview

E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Von Duprin 98/9975 Mortise Devices, 6/7-Pin SFIC Prep, Less Core, Satin Chrome

Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes
